• Development Boards

    For easy prototyping and interfacing choose Espressif’s
    development boards! The all-in-one DevKits below are
    all you need to develop your own IoT applications.

ESP32-S Series
ESP32-S3 Series
ESP32-S2 Series
ESP32-C Series
ESP32-C6 Series
ESP32-C3 Series
ESP32-C2 Series
ESP32-H Series
ESP32-H2 Series
ESP32 Series
ESP8266 Series
Other IoT DevKits

ESP32-S Series

ESP32-S3 Series

32-bit MCU & 2.4 GHz Wi-Fi & Bluetooth 5 (LE)

  • PC connectivity: USB
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

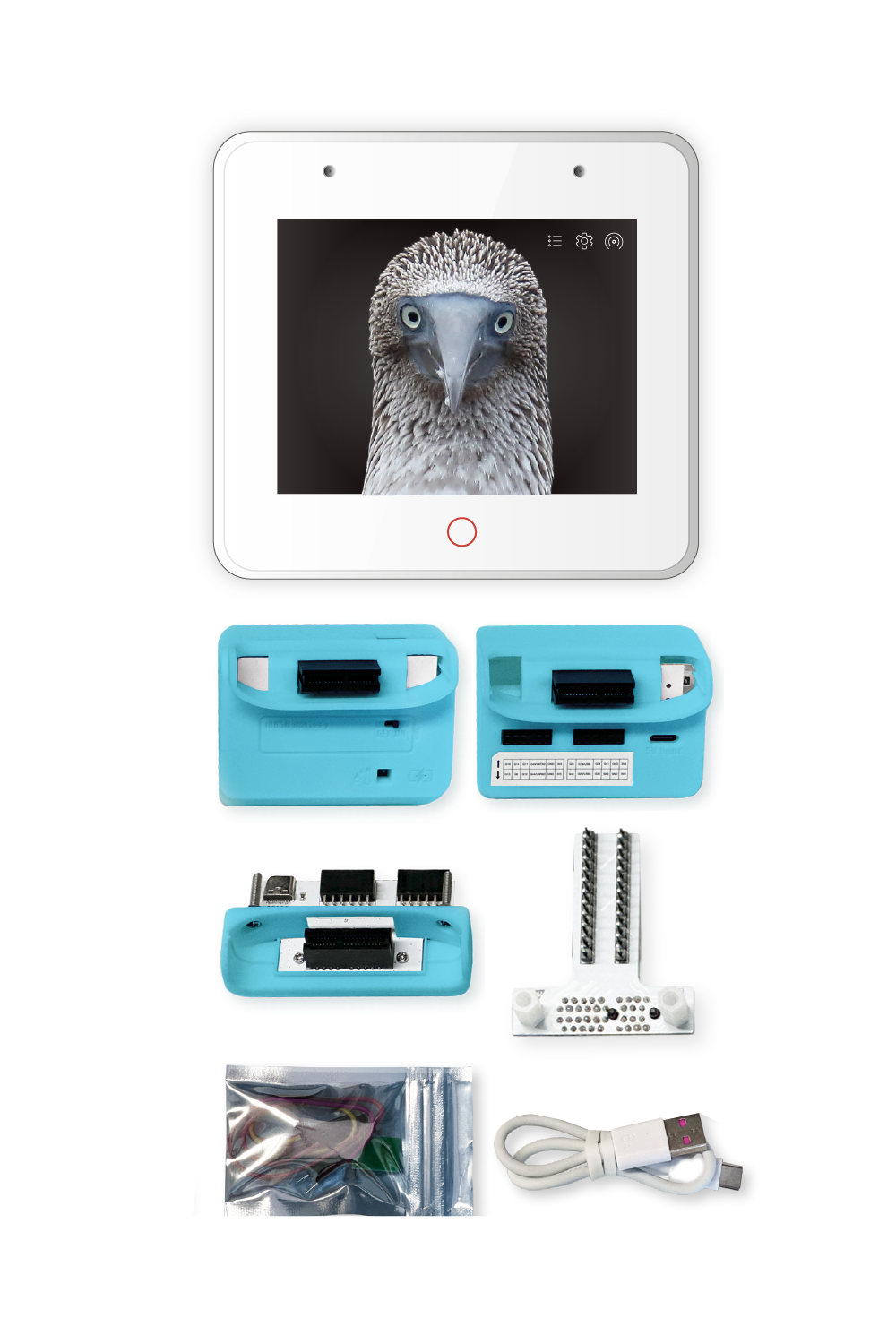

ESP32-S3-BOX-3

The ESP32-S3-BOX-3 is a next-generation development tool designed for AIoT, Edge AI, and IIoT applications. It is based on the powerful ESP32-S3 SoC and features a compact and beautiful enclosure also provides rich assemblies, empowering developers to easily customize and expand its functionality. Leveraging Espressif's reliable software solutions such as ESP-BOX, ESP-SR, ESP-Rainmaker, and ESP-Matter, the ESP32-S3-BOX-3 is capable of meeting the needs of prototyping new projects or building complex IoT systems. It strikes a perfect balance between form and function, propelling the future of development board ecology.

1.8V 16 MB Quad Flash + 1.8V 16 MB Octal PSRAM

USB-C,

USB-A,

输入/输出,

Pmod™ 兼容接口,

MicroSD 插槽,

18650电池槽

LCD Screen, Microphones, Speaker, LED, Buttons, Temp&Hum Sensor, Radar, IR Sensor ESP32-S3-WROOM-1
User Guide
Demo Code

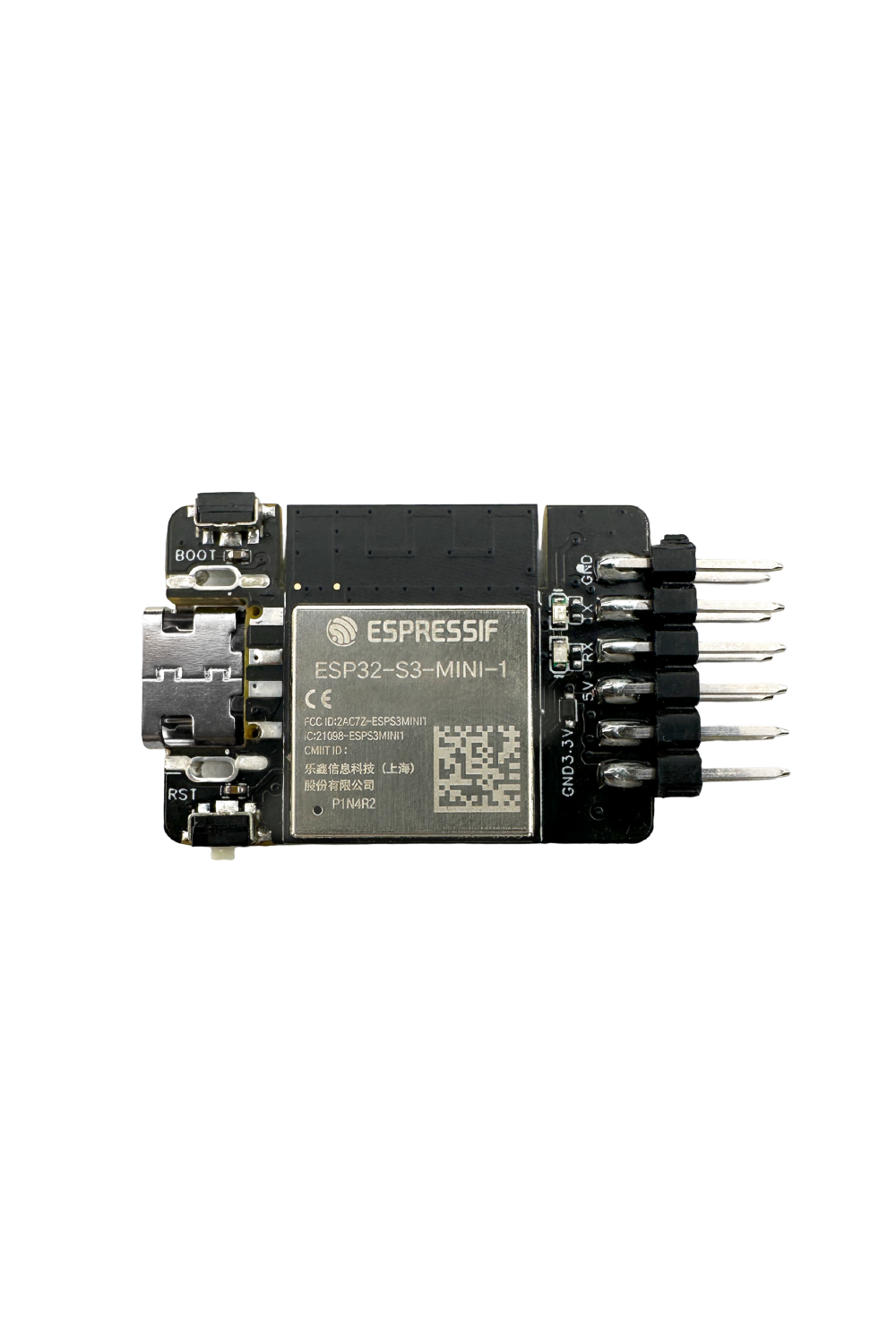

ESP32-S3-USB-Bridge

The ESP32-S3-USB-Bridge is a mini development board based on the ESP32-S3 chip, featuring the onboard ESP32-S3-MINI-1 module, WS2812 RGB LED, serial communication indicator light, and a target chip control button. It offers optional USB Type-C (default) or USB Type-A interfaces. Built upon Espressif's ESP-USB-Bridge project, it supports functions such as USB to serial, USB to JTAG, drag-and-drop programming, wireless debugging, and wireless programming. This board can be used for debugging and programming ESP series chips and other chips.

4 MB Flash + 2 MB PSRAM

I/O

USB-C

Buttons, LEDs ESP32-S3-MINI-1
Getting Started
Demo Code

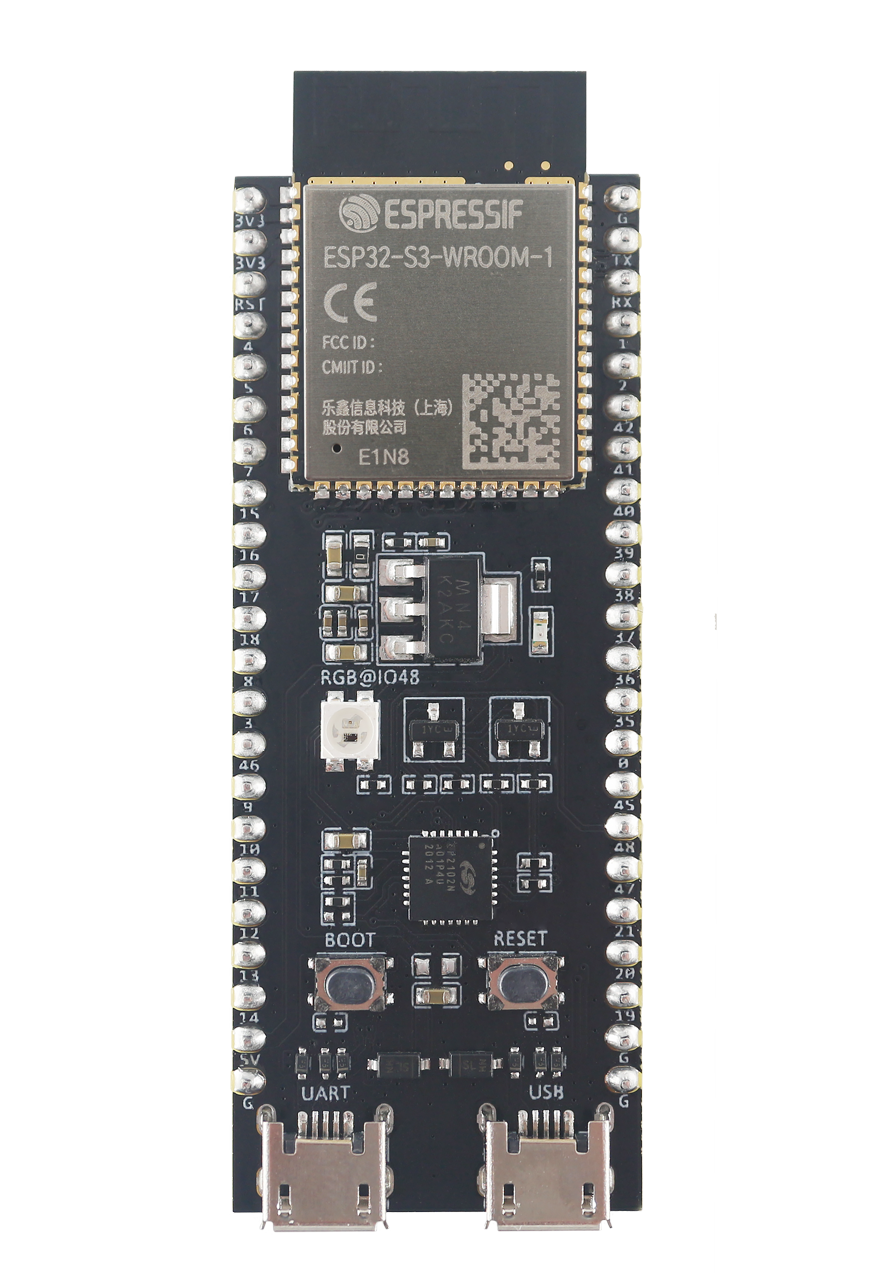

ESP32-S3-DevKitC-1

ESP32-S3 general-purpose development board, based on ESP32-S3-WROOM-1/1U or ESP32-S3-WROOM-2/2U. It has all the ESP32-S3 pins exposed and is easy to connect and use.

8 MB Flash
8 MB Flash + 3.3V 2 MB Quad PSRAM
8 MB Flash + 3.3V 8 MB Octal PSRAM
32 MB Flash + 1.8V 8 MB Octal PSRAM (Suitable for ESP32-S3-WROOM-2)

I/O

USB

Buttons, LEDs ESP32-S3-WROOM-1
ESP32-S3-WROOM-1U
ESP32-S3-WROOM-2
ESP32-S3-WROOM-2U
User Guide

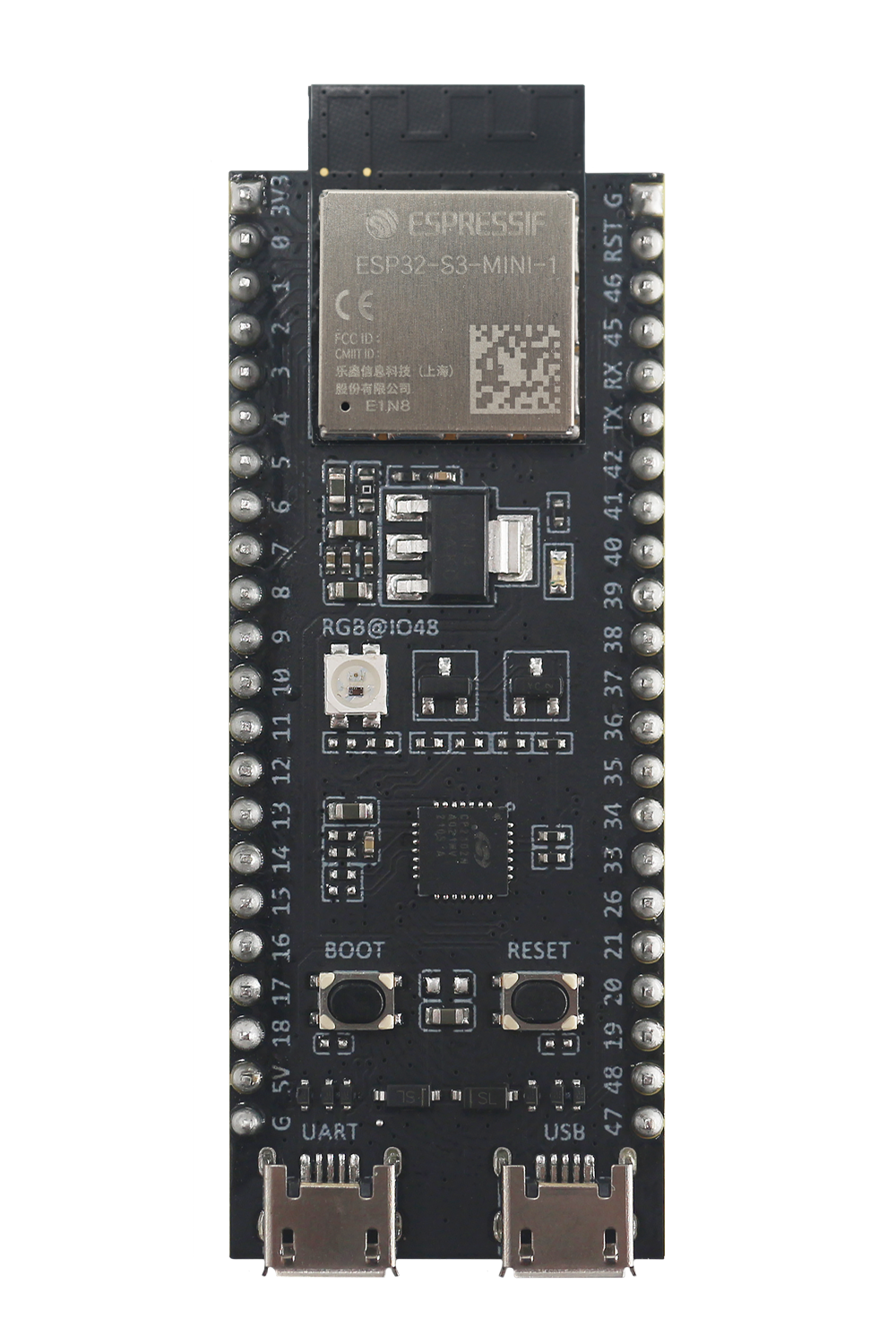

ESP32-S3-DevKitM-1

ESP32-S3 general-purpose development board, based on ESP32-S3-MINI-1 or ESP32-S3-MINI-1U. It has all the ESP32-S3 pins exposed and is easy to connect and use.

8 MB Flash

I/O

USB

Buttons, LEDs ESP32-S3-MINI-1
ESP32-S3-MINI-1U
User Guide

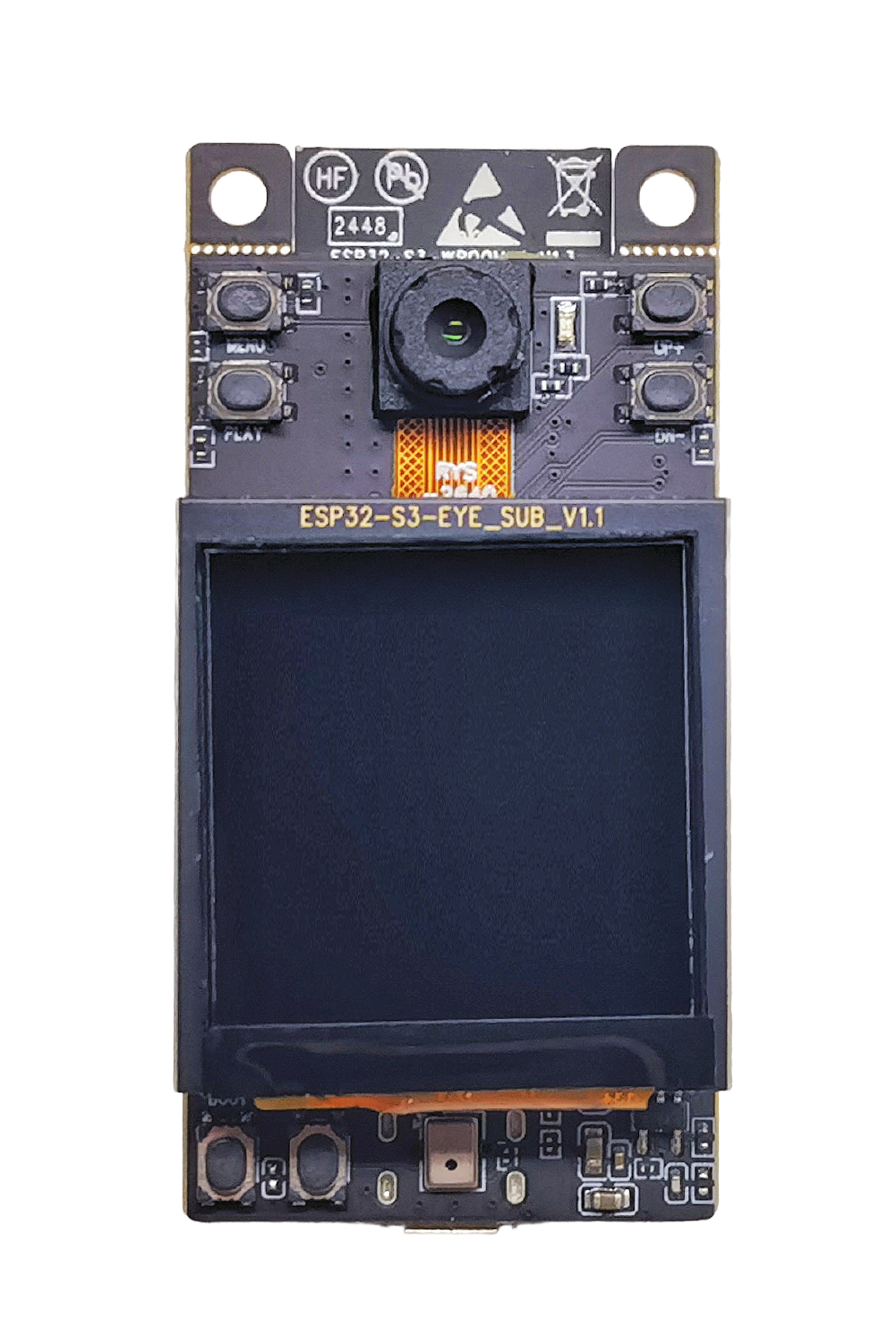

ESP32-S3-EYE

ESP32-S3-EYE is a small-sized AI development board. It is based on the ESP32-S3 SoC and ESP-WHO, Espressif’s AI development framework. It features a 2-Megapixel camera, an LCD display, and a microphone, which are used for image recognition and audio processing. ESP32-S3-EYE offers plenty of storage, with an 8 MB Octal PSRAM and a 8 MB flash. It also supports image transmission via Wi-Fi and debugging through a Micro-USB port.

8 MB Flash + 8 MB PSRAM

USB

Camera, LCD, Microphone, Buttons, TF card ESP32-S3-WROOM-1
User Guide

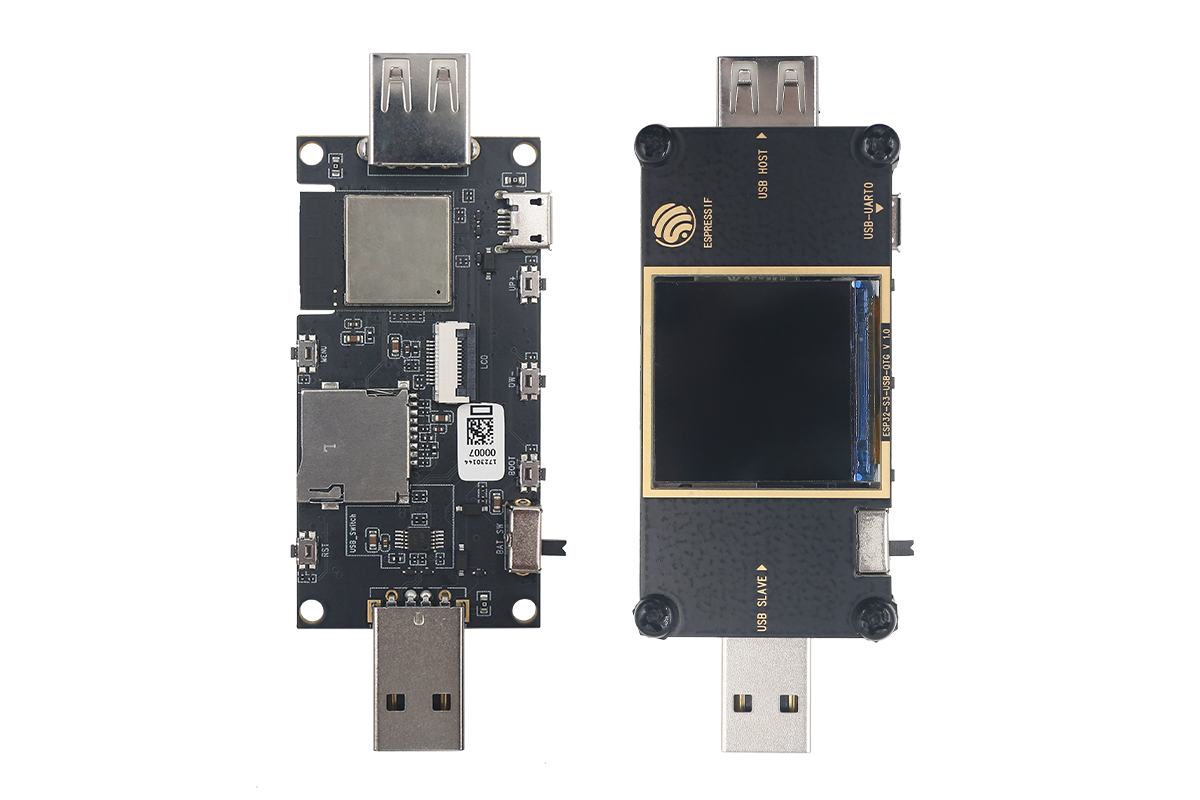

ESP32-S3-USB-OTG

ESP32-S3-USB-OTG is targeting at applications based on USB interface. It is equipped with the ESP32-S3-MINI-1-N8 module. Combined with the Wi-Fi functionality provided by the SoC, the USB interface can be used for video streaming over Wi-Fi, accessing the Internet through a 4G hotspot, connecting to a wireless USB disk, and many other applications.

8 MB Flash embedded in chip

USB Device, USB Host, SD Card

LCD Screen, LED, Button ESP32-S3-MINI-1
User Guide
Demo Code

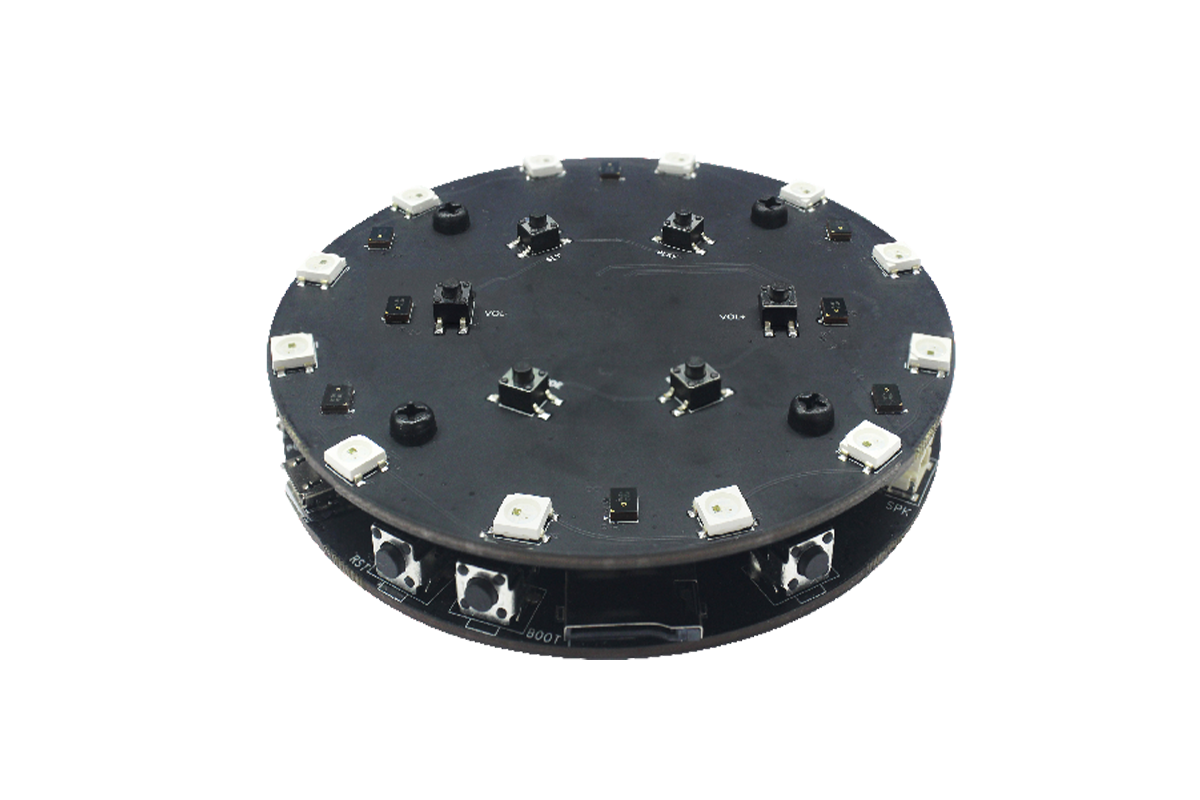

ESP32-S3-Korvo-1

The ESP32-S3-Korvo-1 is an AI development board. It is based on the ESP32-S3 SoC and ESP-Skainet, Espressif’s speech recognition SDK. It features a three-microphone array which is suitable for far-field voice pick-up with low-power consumption. The ESP32-S3-Korvo-1 supports voice wake-up and offline speech command recognition in Chinese and English languages. With ESP-Skainet, you can develop a variety of speech recognition applications, such as smart displays, smart plugs, smart switches, etc.

16 MB Flash + 8 MB PSRAM

I/O

USB

Buttons, TF card, LEDs, Microphones ESP32-S3-WROOM-1
User Guide

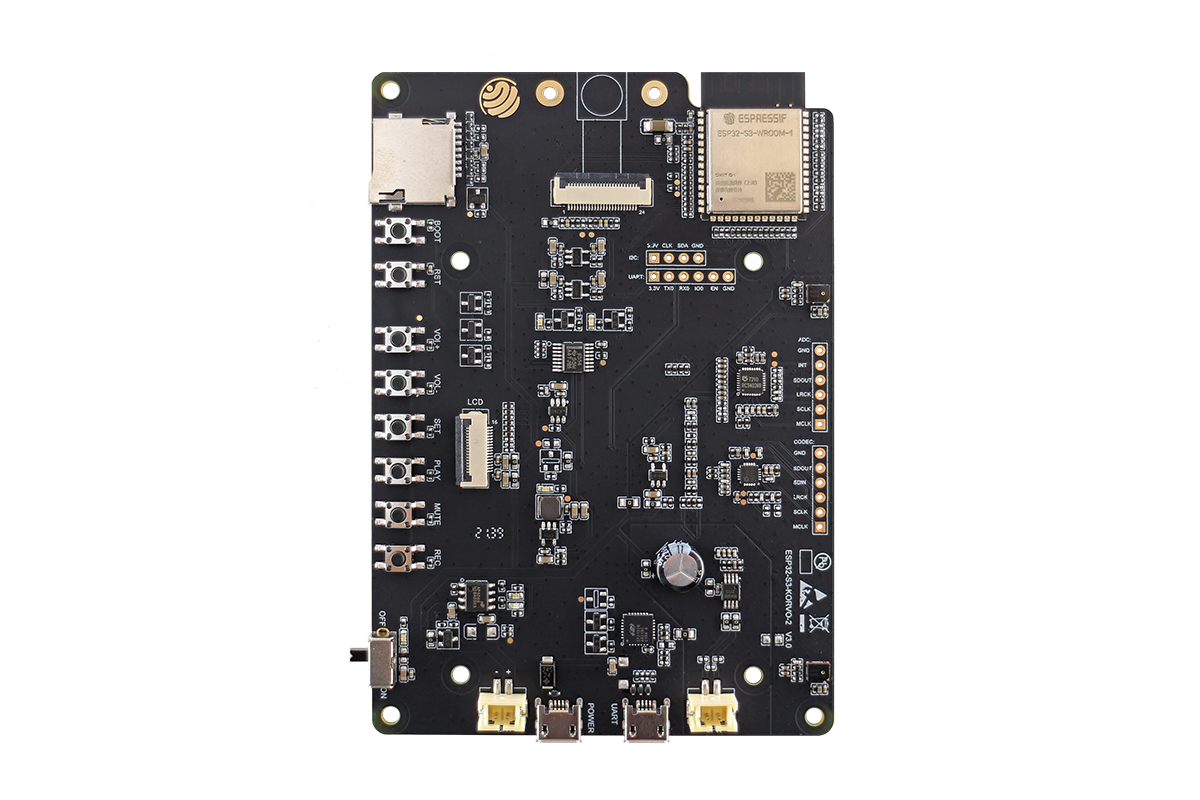

ESP32-S3-Korvo-2

ESP32-S3-Korvo-2 is an ESP32-S3 based multimedia development board. It is equipped with a two-microphone array which is suitable for voice recognition and near/far-field voice wake-up applications. The board integrates multiple peripherals such as LCD, camera, and TF. It also supports JPEG video stream processing. With all of its outstanding features, the board is an ideal choice for the development of low-cost and low-power audio and video products.

16 MB Flash + 8 MB PSRAM

I/O

USB

Button, TF Card, Camera, LCD ESP32-S3-WROOM-1
User Guide
ESP32-S3-LCD-EV-Board

ESP32-S3-LCD-Ev-Board and ESP32-S3-LCD-Ev-Board-2 are two ESP32-S3-based development boards for RGB interface LCD, both of which utilize the module with 16MB Flash and 8-line 8MB PSRAM memory.They are equipped with a 3.95'' 480 x 480 resolution and a 4.3'' 800 x 480 resolution capacitive touch screen respectively. They also house dual array microphones for offline voice wake-up and recognition, and features touch screen and voice interaction. The boards are suitable for prototype construction of products such as smart central control screens, 86-type switch panels, home appliance control panels, electric vehicle dashboards, visual doorbells.

16 MB Flash + 8 MB PSRAM

I/O

USB-C

UART

LCD Screen, Microphones, Speaker, LED, Buttons ESP32-S3-WROOM-1
User Guide

ESP32-S2 Series

32-bit MCU & 2.4 GHz Wi-Fi

  • PC connectivity: USB
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

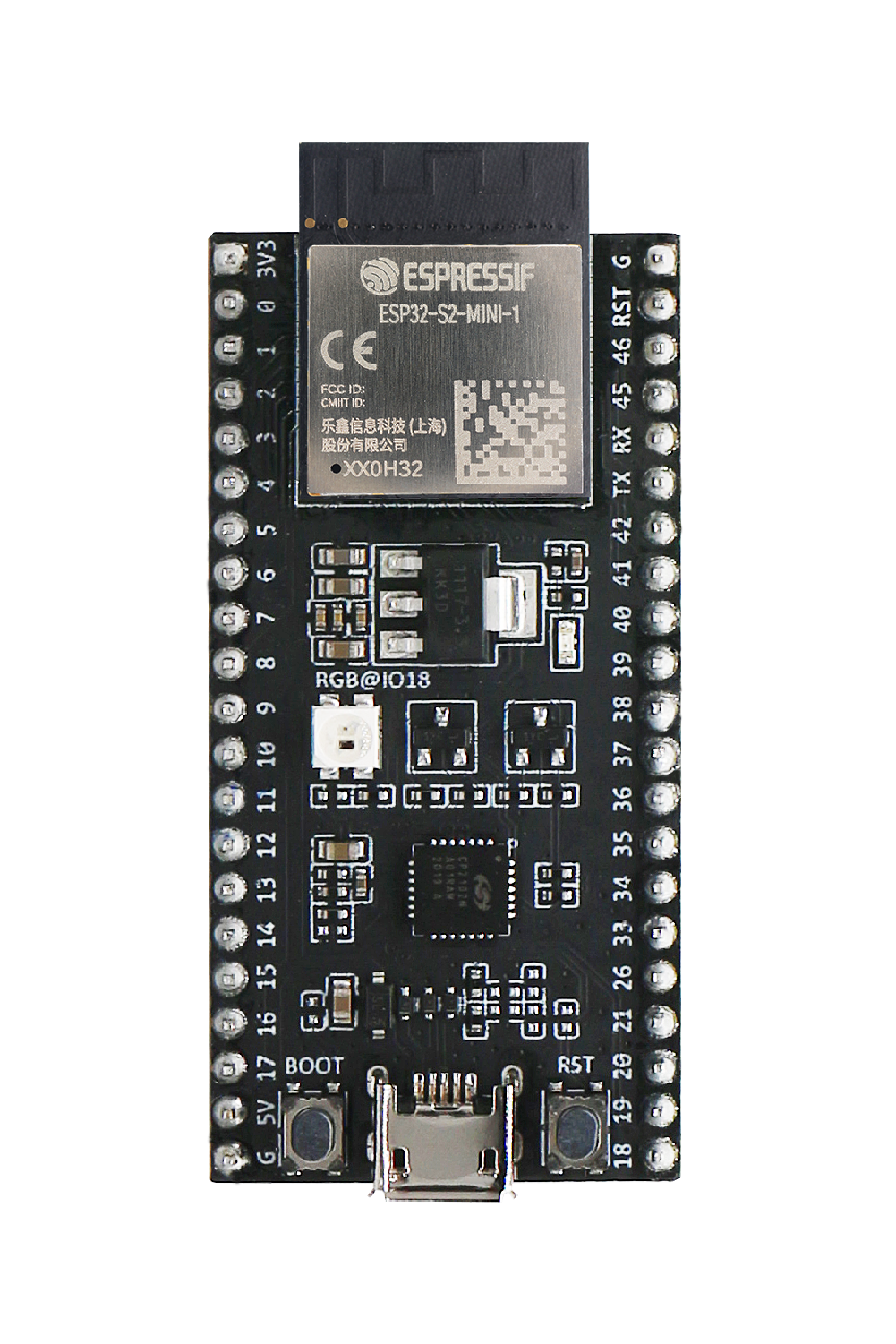

ESP32-S2-DevKitM-1

ESP32-S2-DevKitM-1 is an entry-level development board based on ESP32-S2-MINI series. It has all the ESP32-S2 pins exposed and is easy to connect and use.

4 MB Flash

I/O

USB

Buttons, LEDs ESP32-S2-MINI-2 (ECO1 Embedded)
ESP32-S2-MINI-2U (ECO1 Embedded)
ESP32-S2-MINI-1 (ECO0 Embedded)
ESP32-S2-MINI-1U (ECO0 Embedded)
User Guide

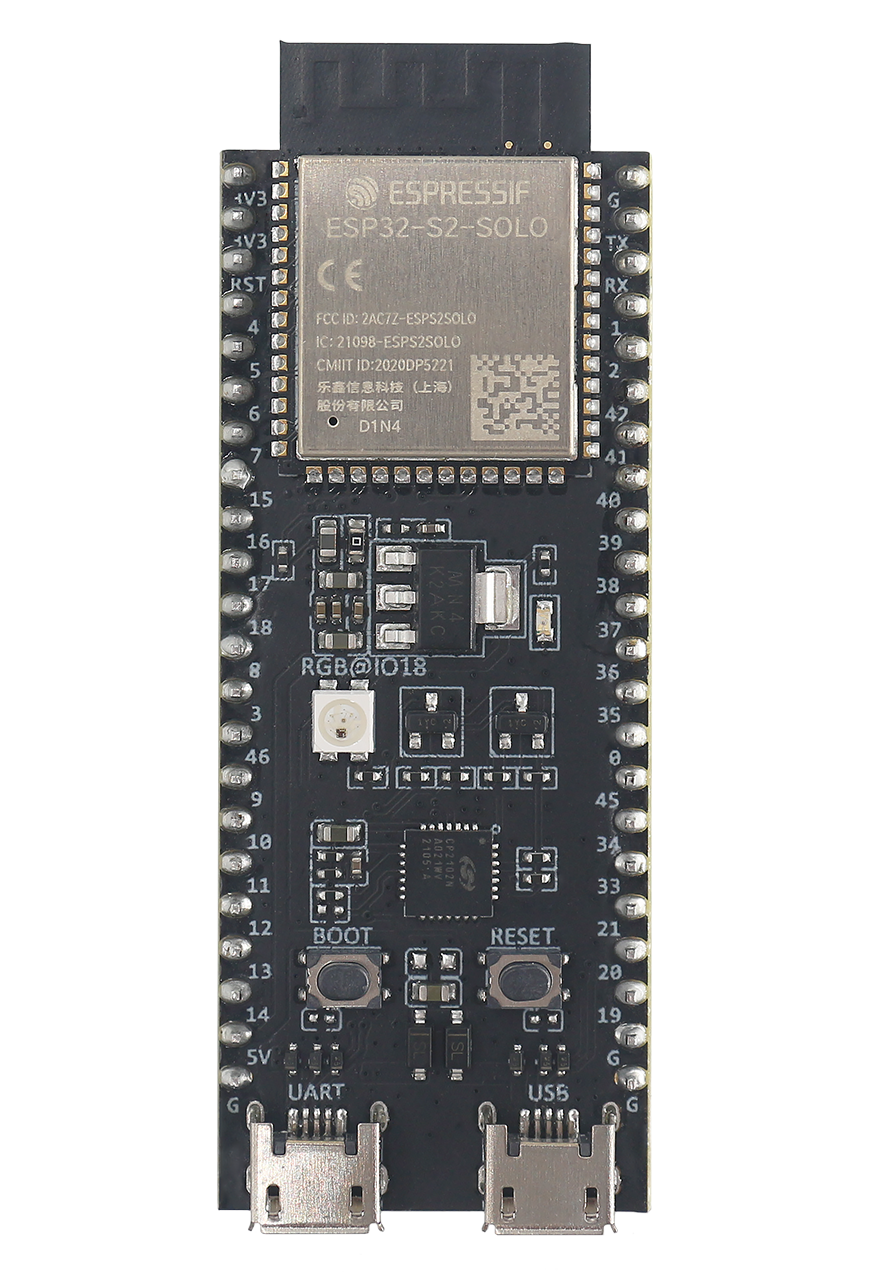

ESP32-S2-DevKitC-1

ESP32-S2 general-purpose development board, based on ESP32-S2-SOLO series. It has all the ESP32-S2 pins exposed and is easy to connect and use.

4MB Flash, 8MB Flash + 2 MB PSRAM

I/O

USB

Buttons, LED ESP32-S2-SOLO-2 (ECO1 Embedded)
ESP32-S2-SOLO-2U (ECO1 Embedded)
ESP32-S2-SOLO (ECO0 Embedded)
ESP32-S2-SOLO-U (ECO0 Embedded)
User Guide
ESP32-S2-DevKitC-1

ESP32-S2 general-purpose development board, based on ESP32-S2-SOLO series. It has all the ESP32-S2 pins exposed and is easy to connect and use.

4MB Flash, 8MB Flash + 2 MB PSRAM

I/O

USB

Buttons, LED ESP32-S2-SOLO-2 (ECO1 Embedded)
ESP32-S2-SOLO-2U (ECO1 Embedded)
ESP32-S2-SOLO (ECO0 Embedded)
ESP32-S2-SOLO-U (ECO0 Embedded)
User Guide
ESP32-S2-Saola-1

ESP32-S2 general-purpose development board, based on ESP32-S2-WROVER, ESP32-S2-WROVER-I, ESP32-S2-WROOM or ESP32-S2-WROOM-I, with 4 MB flash and pin header.

4 MB Flash / 4 MB Flash + 2 MB PSRAM

  • I/O
  • USB
Buttons, LED ESP32-S2-WROOM
ESP32-S2-WROOM-I
ESP32-S2-WROVER
ESP32-S2-WROVER-I
User Guide
Demo Code

ESP32-C Series

ESP32-C6 Series

32-bit RISC-V MCU & 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE) & IEEE 802.15.4

  • PC connectivity: USB
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

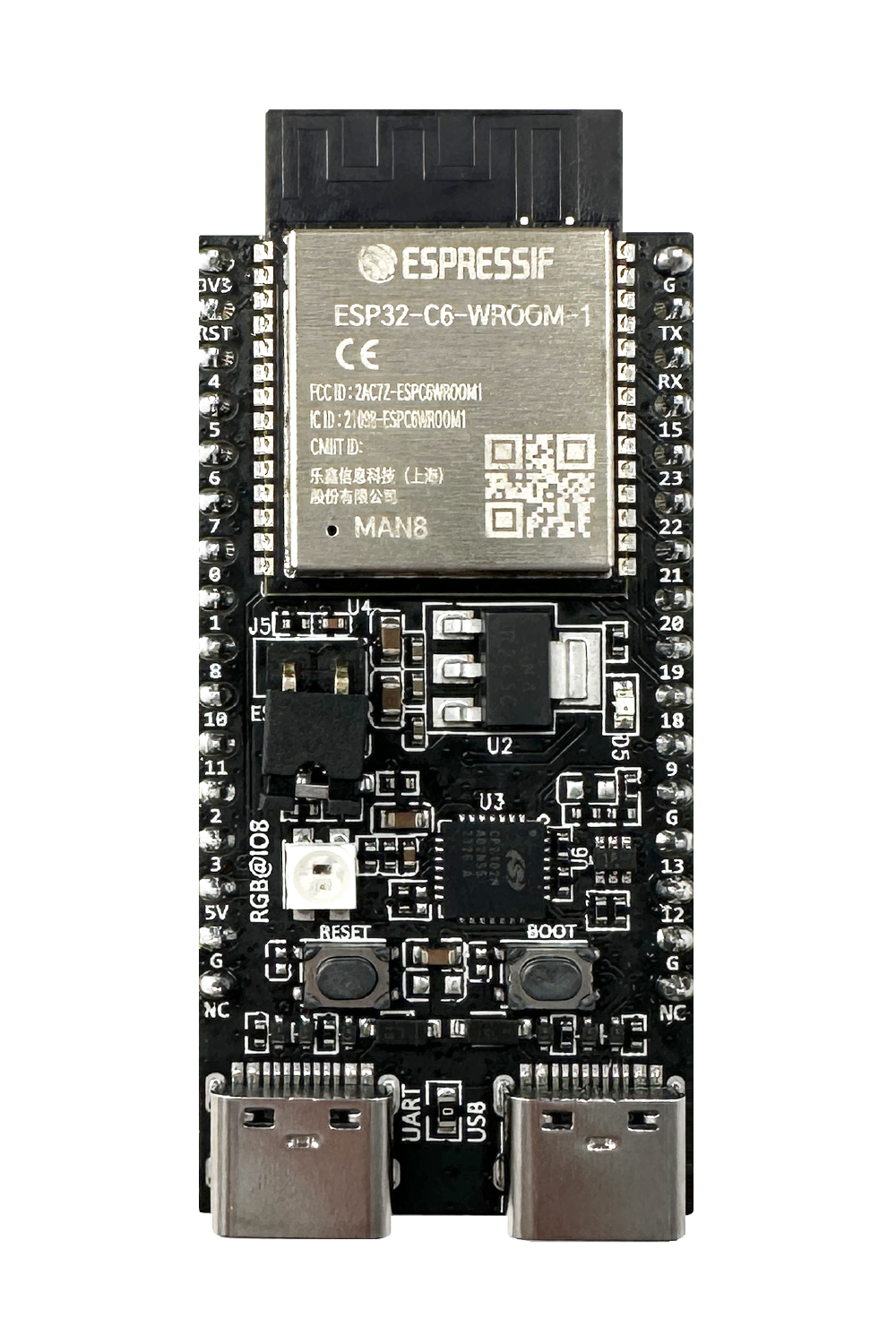

ESP32-C6-DevKitC-1

ESP32-C6 general-purpose development board, based on ESP32-C6-WROOM-1 or ESP32-C6-WROOM-1U. It has all the ESP32-C6 pins exposed and is easy to connect and use. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard.

8 MB Flash

I/O

USB

Buttons, LEDs ESP32-C6-WROOM-1
ESP32-C6-WROOM-1U
N/A

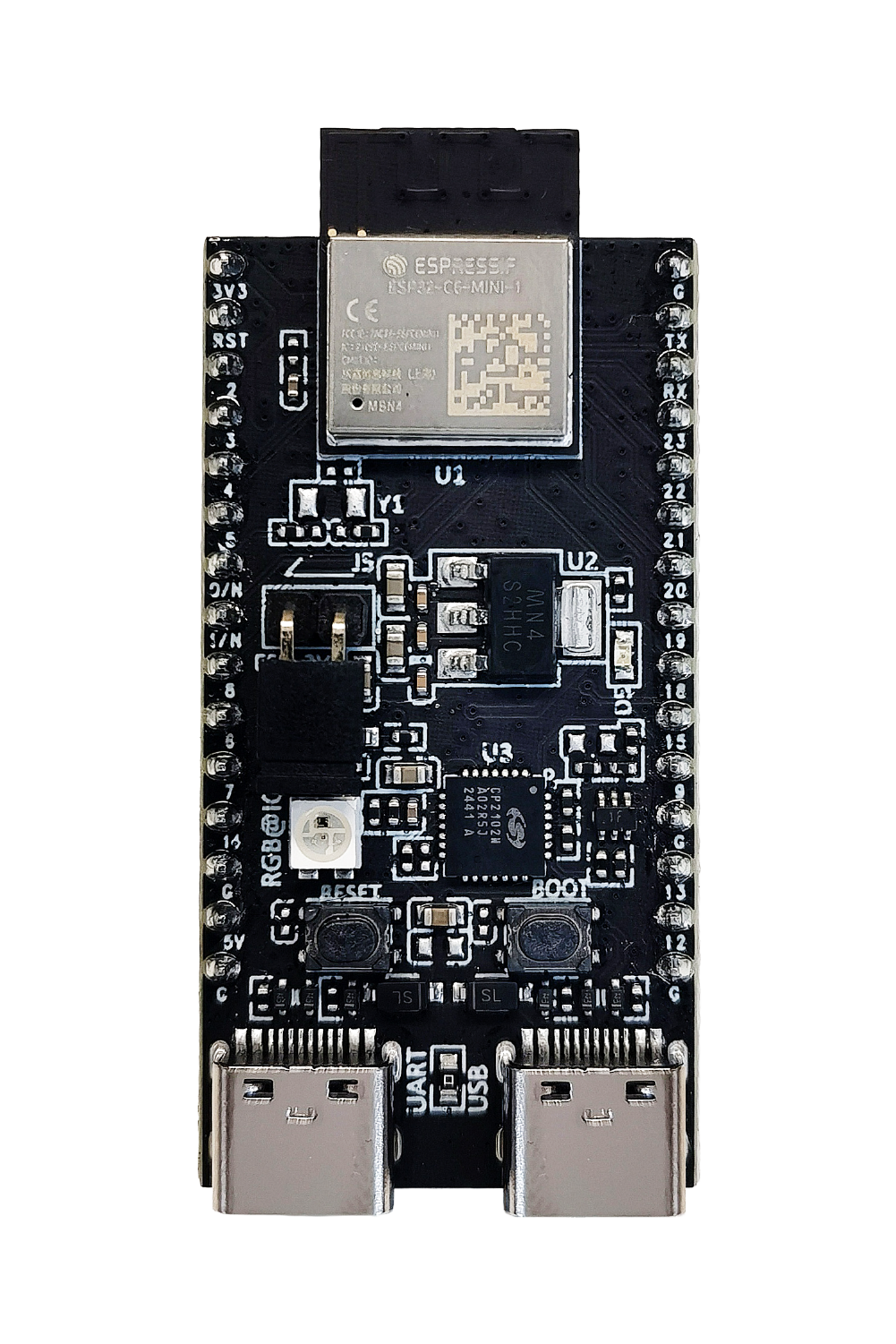

ESP32-C6-DevKitM-1

ESP32-C6 general-purpose development board, based on ESP32-C6-MINI-1 or ESP32-C6-MINI-1U. It has all the ESP32-C6 pins exposed and is easy to connect and use. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitM-1 on a breadboard.

4 MB Flash

I/O

USB

Buttons, LEDs ESP32-C6-MINI-1
ESP32-C6-MINI-1U
User Guide

ESP32-C3 Series

32-bit RISC-V MCU & 2.4 GHz Wi-Fi & Bluetooth LE 5 (LE)

  • PC connectivity: USB
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

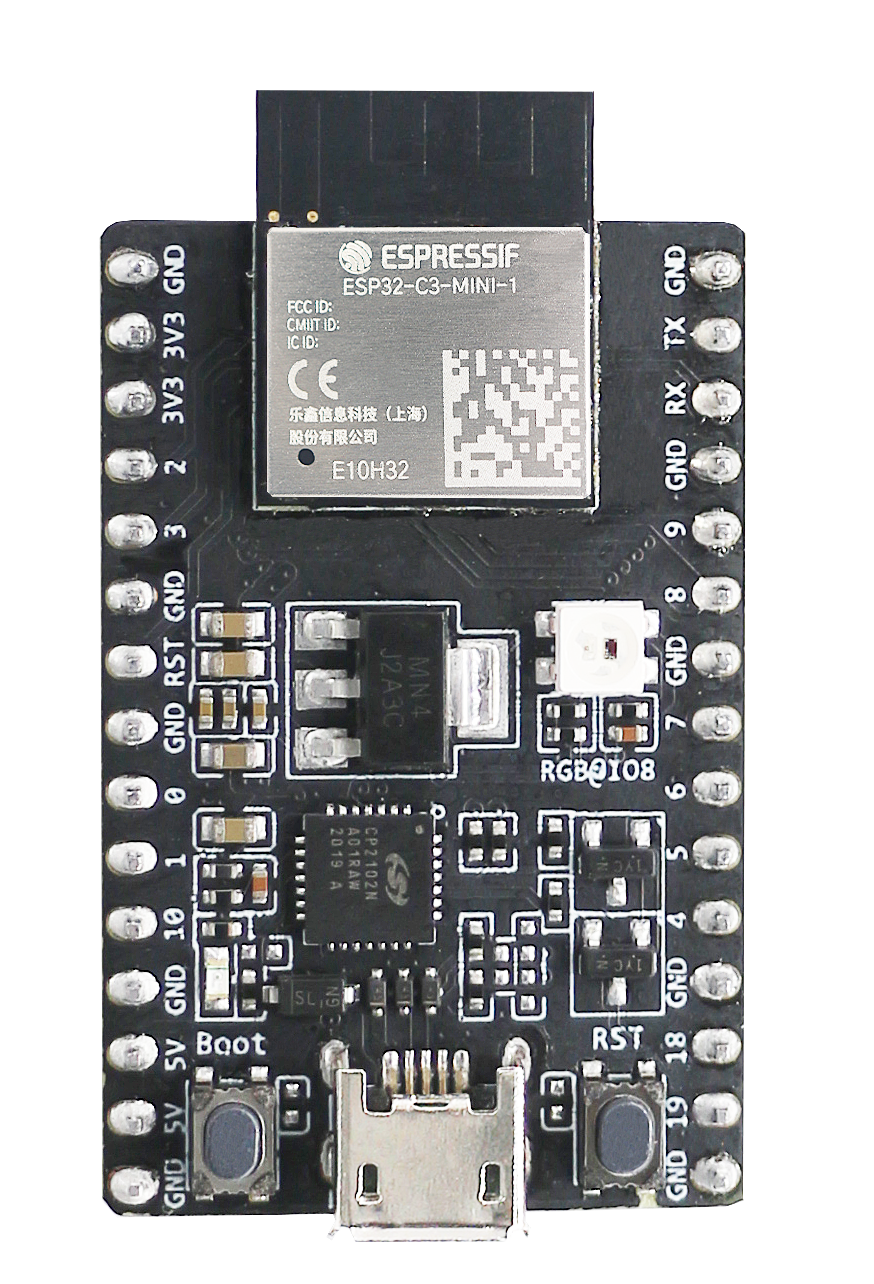

ESP32-C3-DevKitM-1

ESP32-C3-DevKitM-1 is an entry-level development board equipped with ESP32-C3-MINI-1 or ESP32-C3-MINI-1U. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard.

4 MB Flash

I/O

USB

Buttons, LEDs ESP32-C3-MINI-1
ESP32-C3-MINI-1U
User Guide

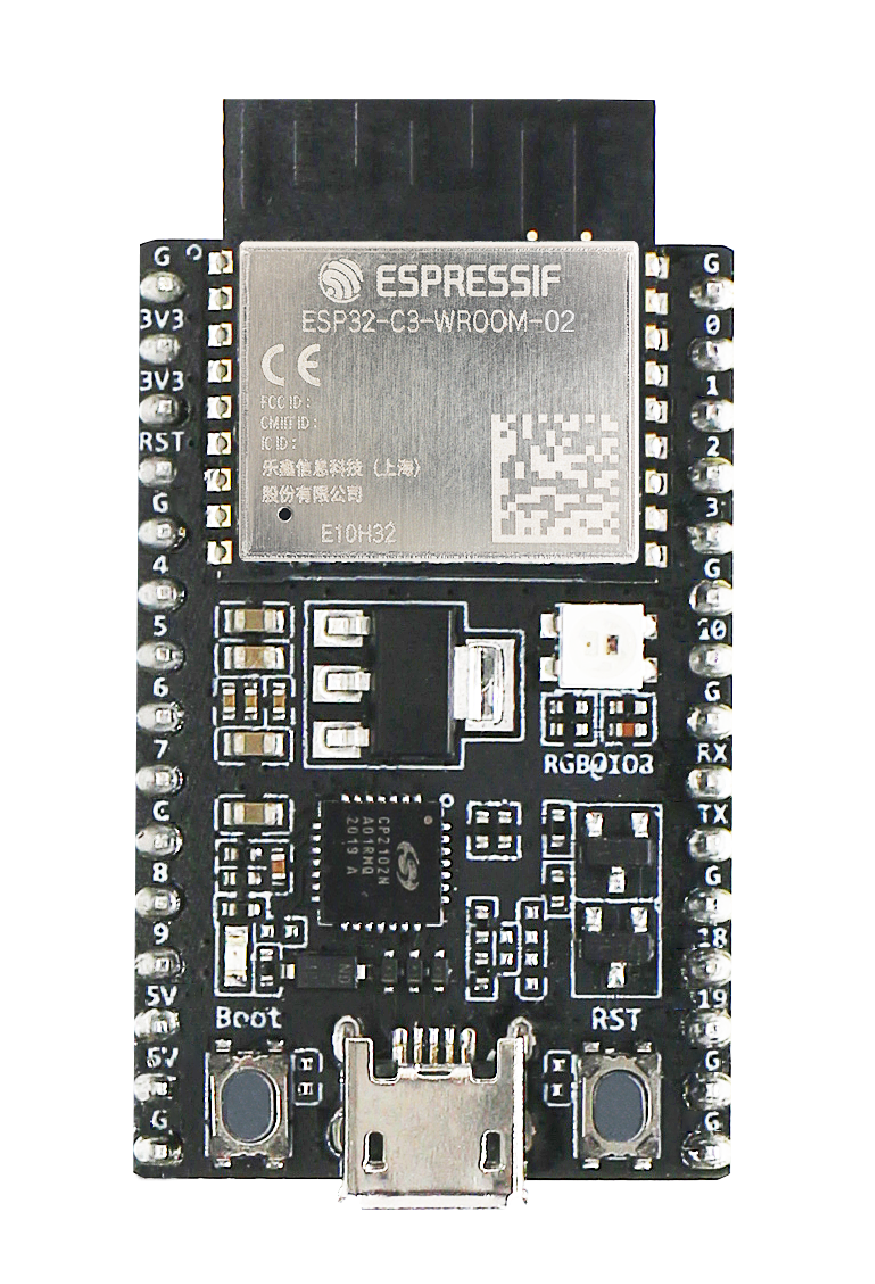

ESP32-C3-DevKitC-02

ESP32-C3-DevKitC-02 is an entry-level development board equipped with ESP32-C3-WROOM-02 or ESP32-C3-WROOM-02U. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-1 on a breadboard.

4 MB Flash

I/O

USB

Buttons, LEDs ESP32-C3-WROOM-02
ESP32-C3-WROOM-02U
User Guide

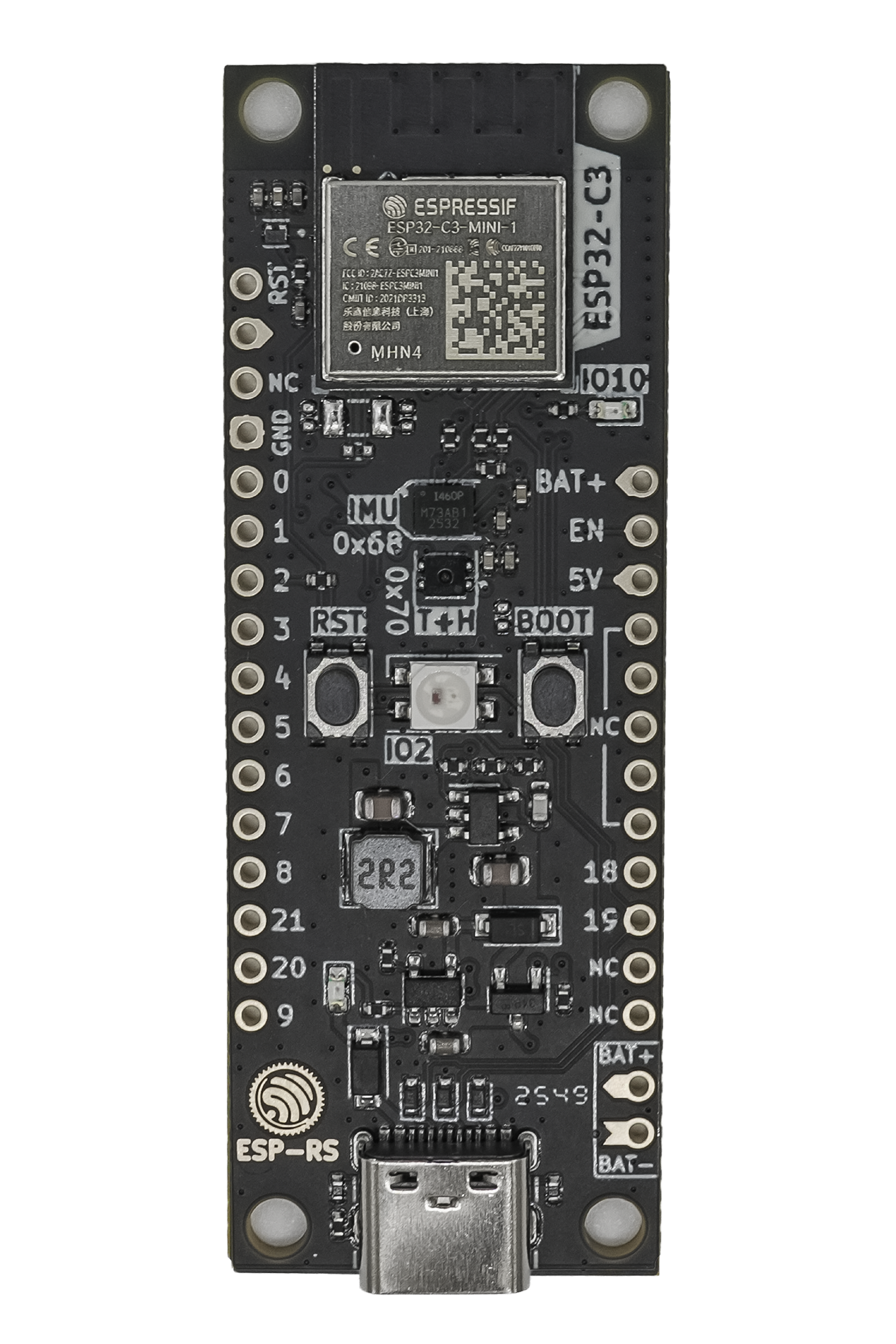

ESP32-C3-DevKit-RUST-1

ESP32-C3-DevKit-RUST-1 is based on the ESP32-C3, a single-core Wi-Fi and Bluetooth 5 (LE) microcontroller SoC, based on the open-source RISC-V architecture. This special board also includes the ESP32-C3-MINI-1 module, a 6DoF IMU, a temperature and humidity sensor, a Li-Ion battery charger, and a Type-C USB. The board is designed to be easily used in training sessions, demonstrating Rust capabilities with all the board peripherals.

4 MB Flash

I/O

USB type-C

Button, LED, IMU, Temperature and humidity sensor ESP32-C3-MINI-1
User Guide
Training

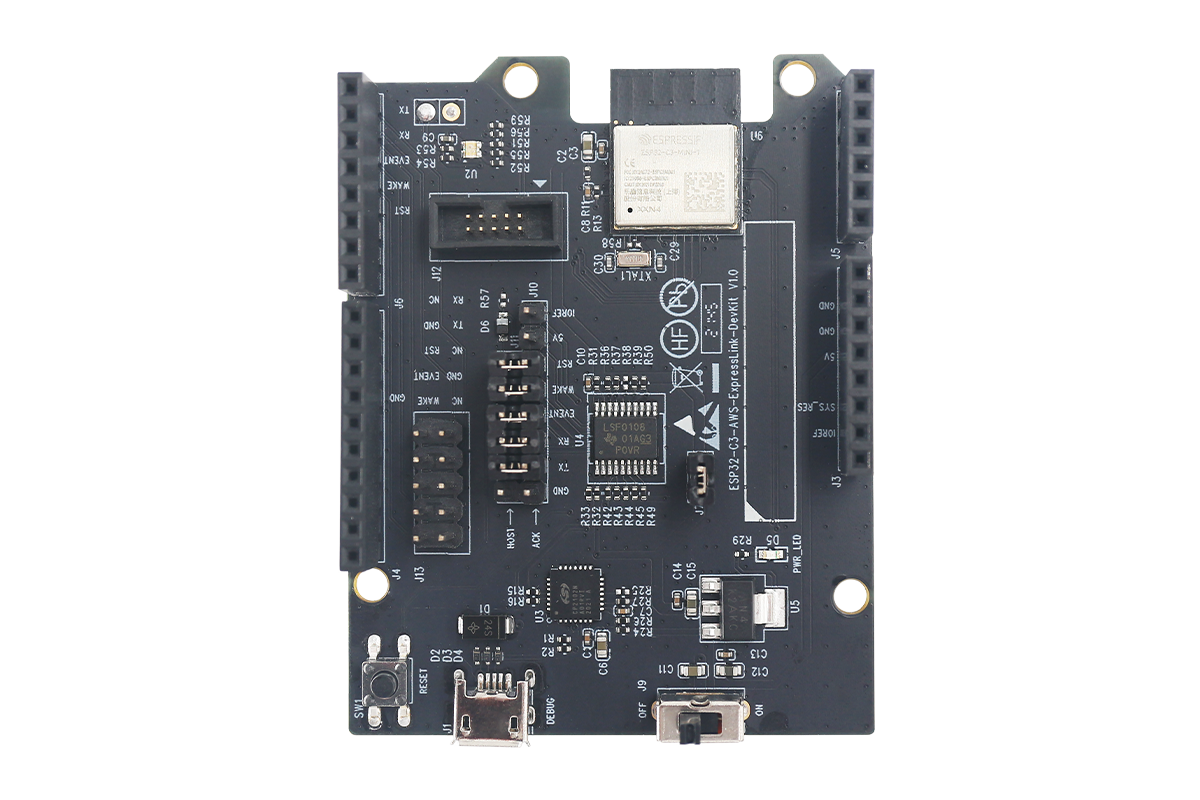

ESP32-C3-AWS-ExpressLink-DevKit

ESP32-C3-AWS-ExpressLink-DevKit is a development board based on the ESP32-C3-MINI-1-N4-A module. Its pin layout is compatible with that of the Arduino Zero development board, and therefore ESP32-C3-AWS-ExpressLink-DevKit can be directly plugged in Arduino Zero, or connected with other host boards and peripherals via jumpers.

4 MB Flash

Pin Headers

Micro USB

Button, LEDs ESP32-C3-MINI-1
User Guide

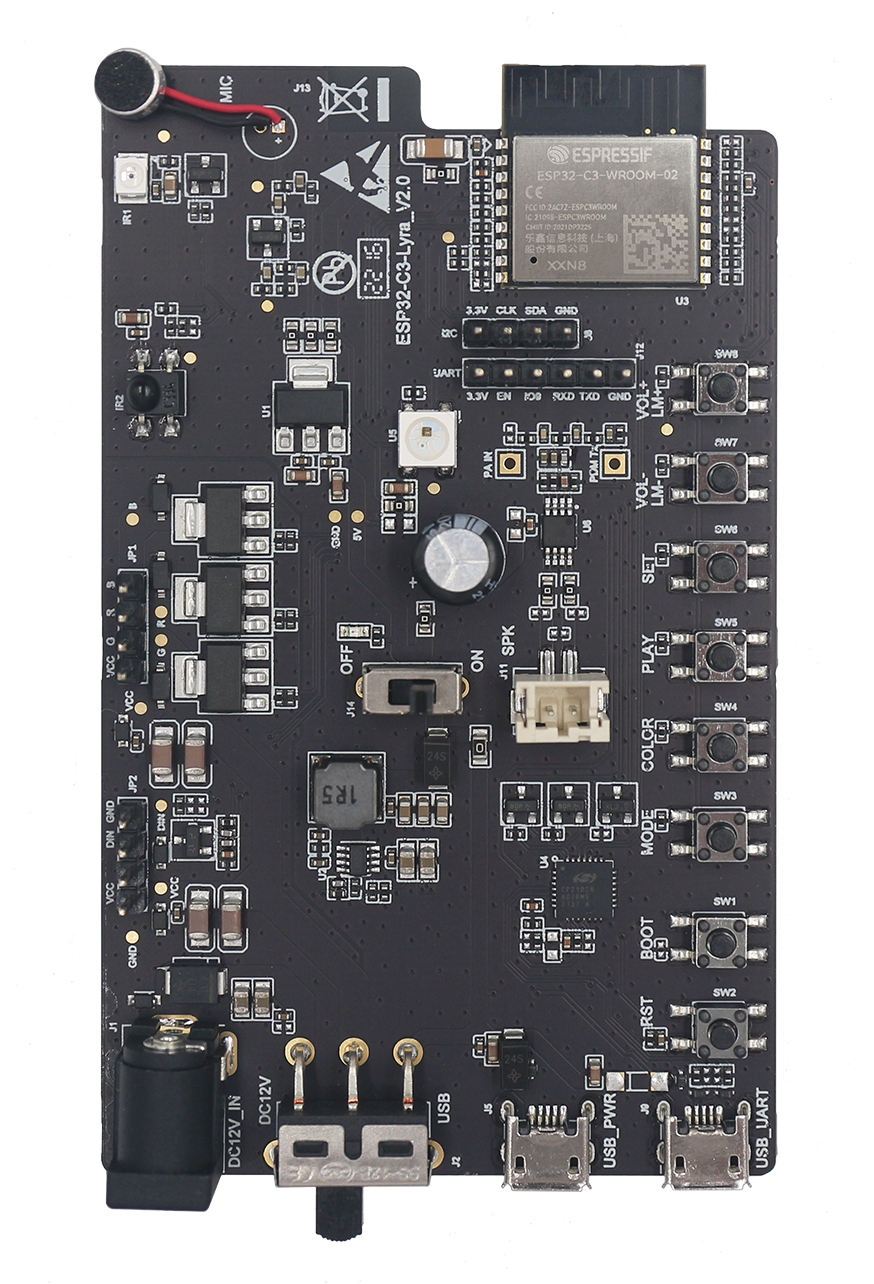

ESP32-C3-Lyra

ESP32-C3-Lyra is an ESP32-C3-based audio development board produced by Espressif for controlling light with audio. The board has control over the microphone, speaker, and LED strip, perfectly matching customers’ product development needs for ultra-low-cost and high-performance audio broadcasters and rhythm light strips.

4 MB Flash

I/O

UART

Key, RGB, Microphone, Speaker ESP32-C3-WROOM-02
User Guide

ESP32-C2 Series

32-bit RISC-V MCU & 2.4 GHz Wi-Fi & Bluetooth LE 5 (LE)

  • PC connectivity: USB
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

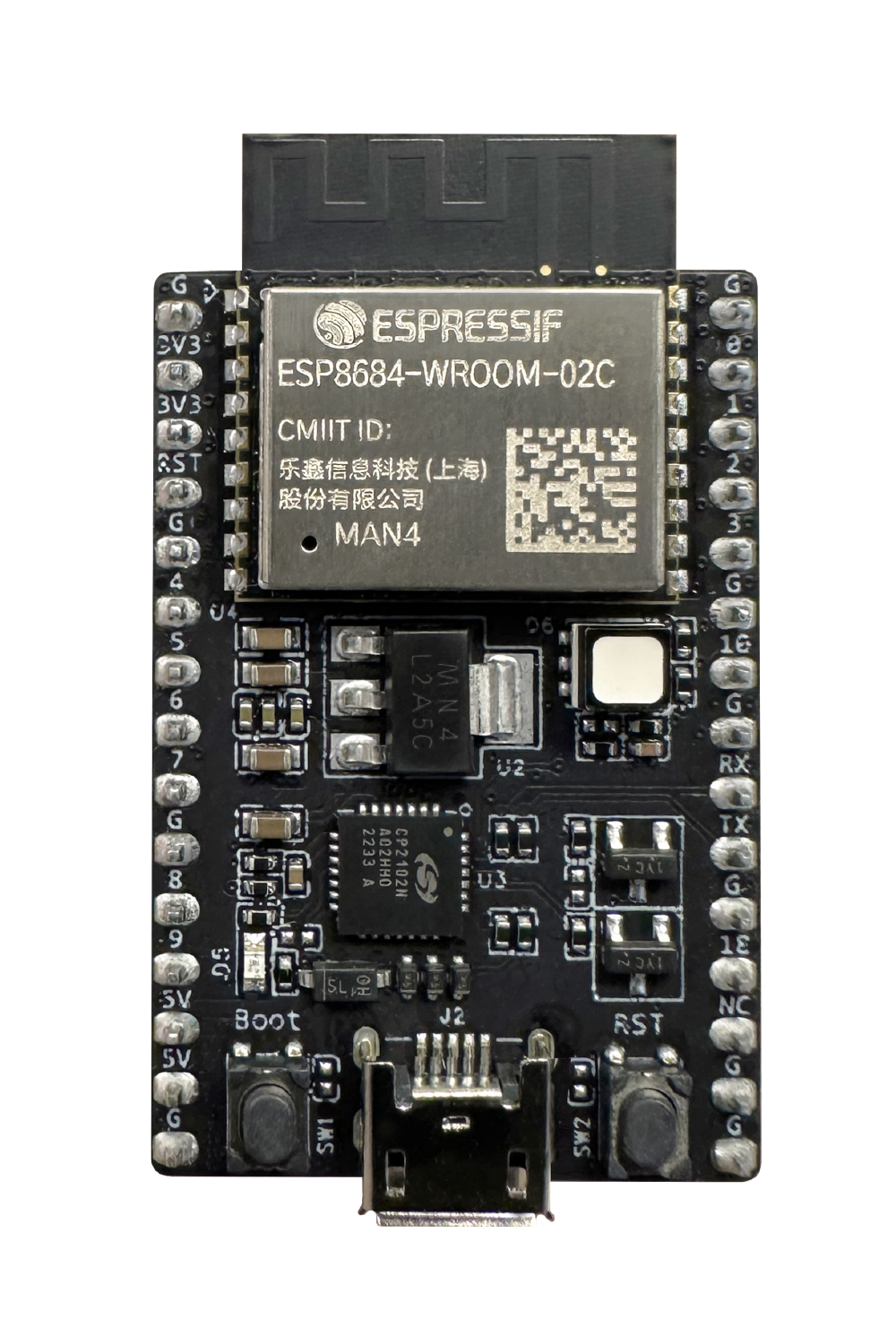

ESP8684-DevKitC-02

The ESP8684-DevKitC-02 is an entry-level development board based on ESP8684-WROOM-02C, ESP8684-WROOM-02UC. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP8684-DevKitC-02 on a breadboard.

4 MB Flash
I/O
USB
Buttons, LEDs ESP8684-WROOM-02C
User Guide

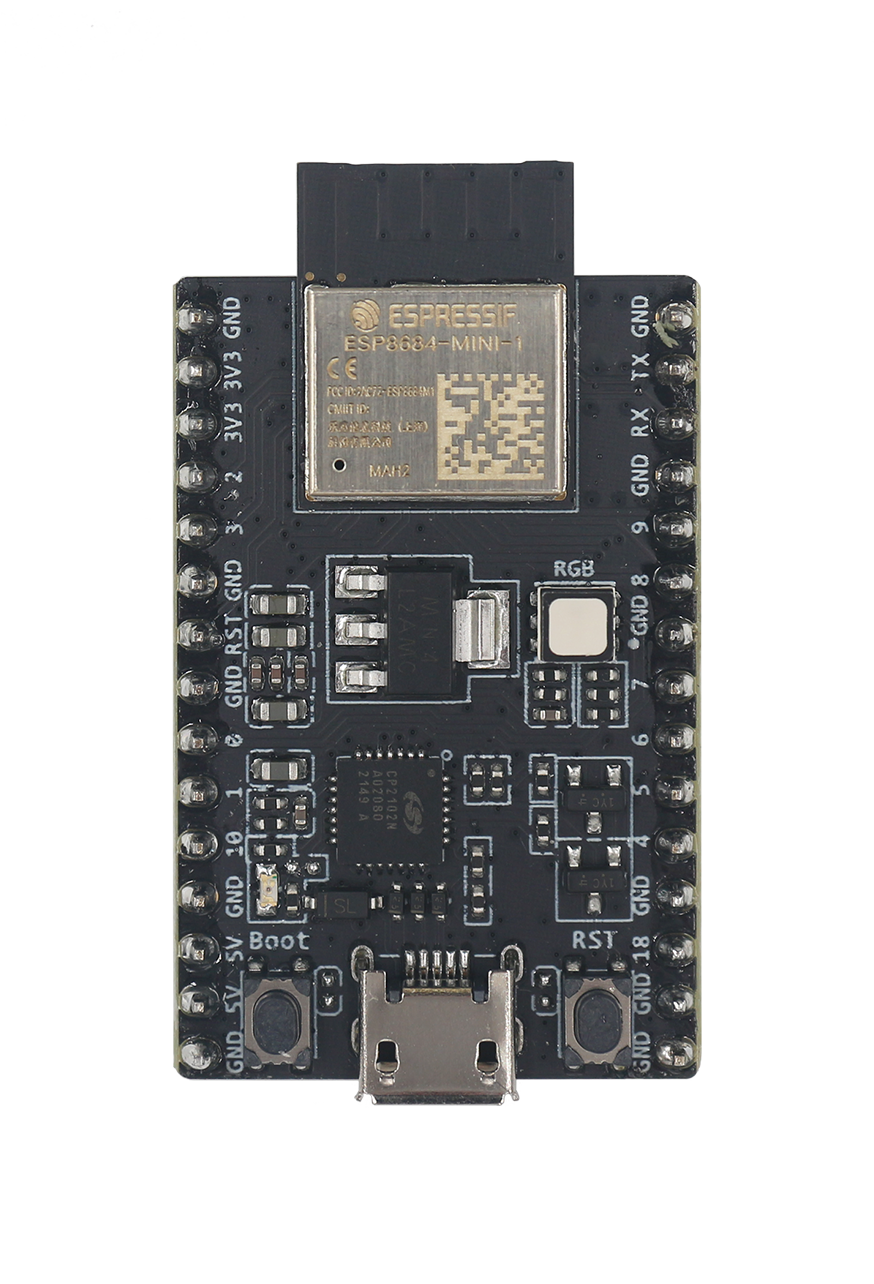

ESP8684-DevKitM-1

The ESP8684-DevKitM-1 is an entry-level development board based on ESP8684-MINI-1 or ESP8684-MINI-1U. This board integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP8684-DevKitM-1 on a breadboard.

4 MB Flash

I/O

USB

Buttons, LEDs ESP8684-MINI-1
ESP8684-MINI-1U
User Guide

ESP32-H Series

ESP32-H2 Series

32-bit RISC-V MCU & Bluetooth 5 (LE) & IEEE 802.15.4

  • PC connectivity: USB
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

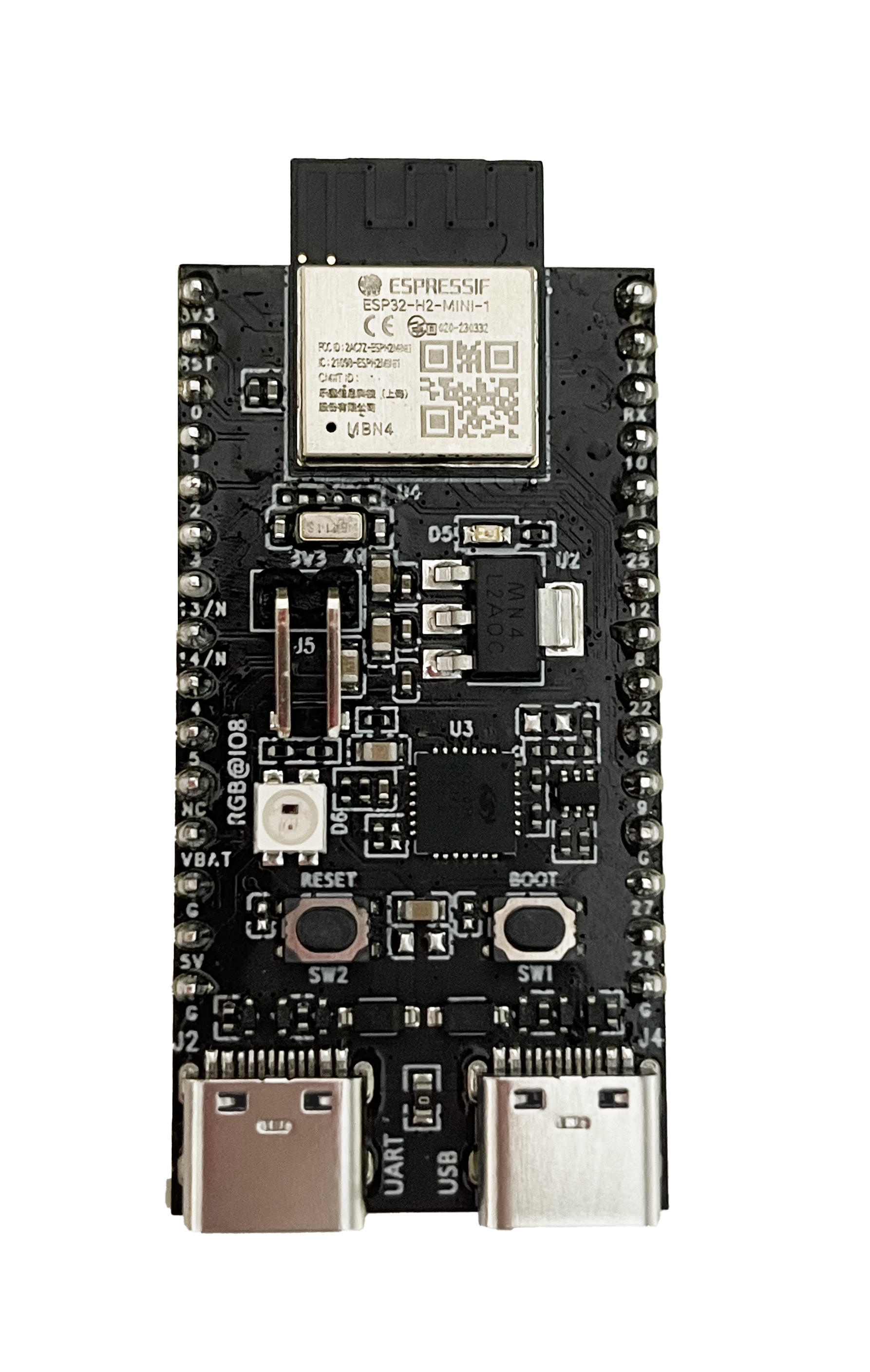

ESP32-H2-DevKitM-1

ESP32-H2-DevKitM-1 is an entry-level development board based on Bluetooth® Low Energy and IEEE 802.15.4 combo modules ESP32-H2-MINI-1 or ESP32-H2-MINI-1U. Most of the I/O pins on the ESP32-H2-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-H2-DevKitM-1 on a breadboard.

4 MB Flash

I/O

USB

Buttons, LEDs ESP32-H2-MINI-1
ESP32-H2-MINI-1U
User Guide

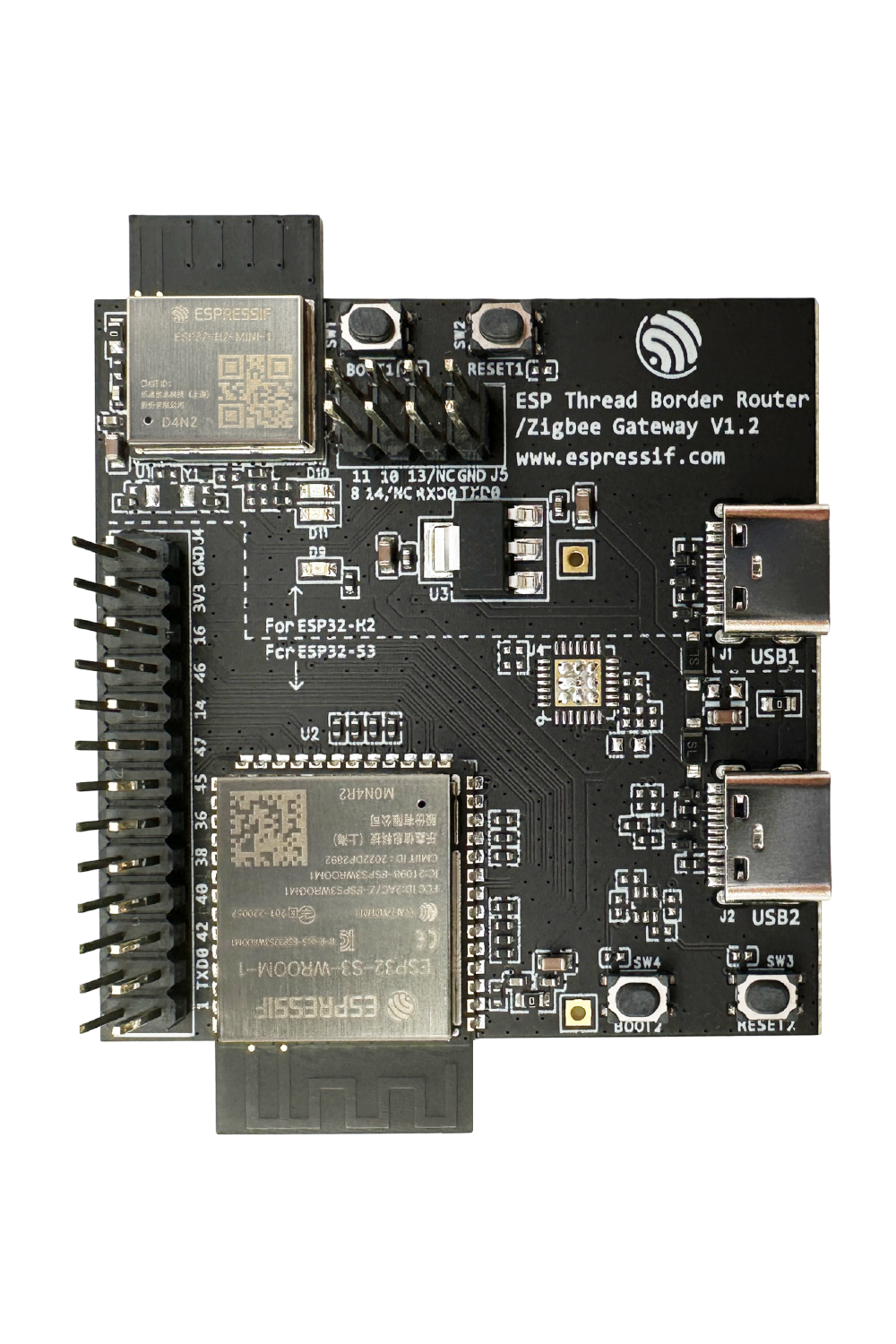

ESP Thread Border Router/Zigbee Gateway

ESP Thread Border Router/Zigbee Gateway board integrates the ESP32-S3 SoC and the ESP32-H2 RCP, enabling the development of Thread Border Router and Zigbee Gateway products. Espressif's Thread Border Router solution complies with Thread 1.3 and supports the Matter application. It offers various features including Bi-directional IPv6 connectivity, Service Discovery Delegate, Service Registration Server, Multicast Forwarding, NAT64, and a user-friendly Web GUI for easy configuration. Additionally, the board supports the addition of daughter boards to expand its functionality such as: Ethernet interface (available for separate purchase), HMI and Voice Control.

4 MB Flash and 2 MB PSRAM in ESP32-S3-WROOM-1 + 2 MB Flash in ESP32-H2-MINI-1

I/O

USB type-C

Button, LED ESP32-S3-WROOM-1
ESP32-H2-MINI-1
User Guide
Demo Code

ESP32 Series

32-bit MCU & 2.4 GHz Wi-Fi & BT/Bluetooth LE

  • PC connectivity: USB
  • Power supply options: USB (by default), or 5V/GND header pins, or 3V3/GND header pins
  • SDK: ESP-IDF source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

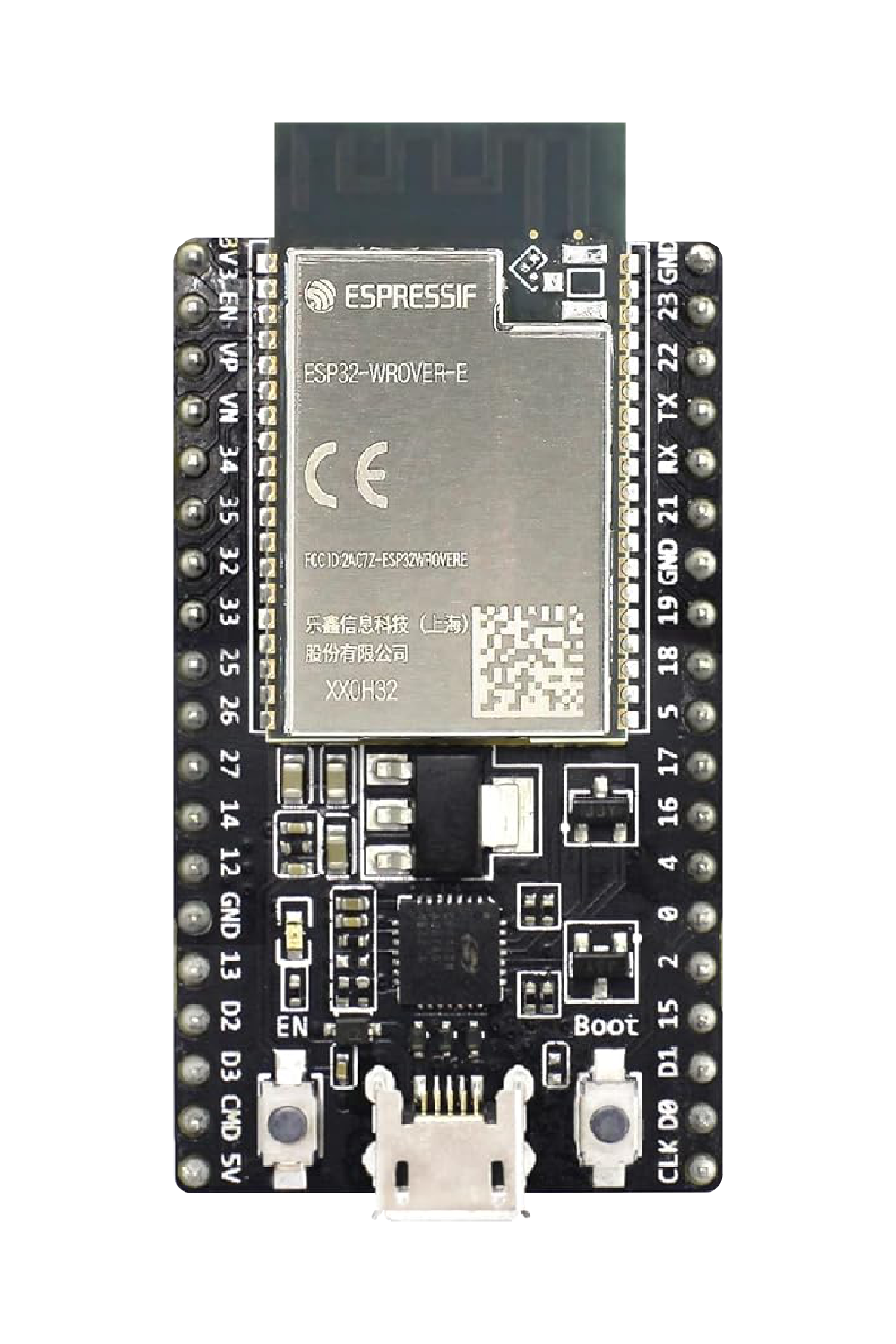

ESP32-DevKitC

ESP32-DevKitC is an entry-level development board. It has all the ESP32 pins exposed and it easy to connect and use.

4 / 8 MB Flash

I/O

USB

Buttons, LEDs ESP32-WROOM-32E
ESP32-WROOM-32UE
ESP32-WROOM-DA
ESP32-WROVER-E
ESP32-WROVER-IE
Getting Started
Demo Code

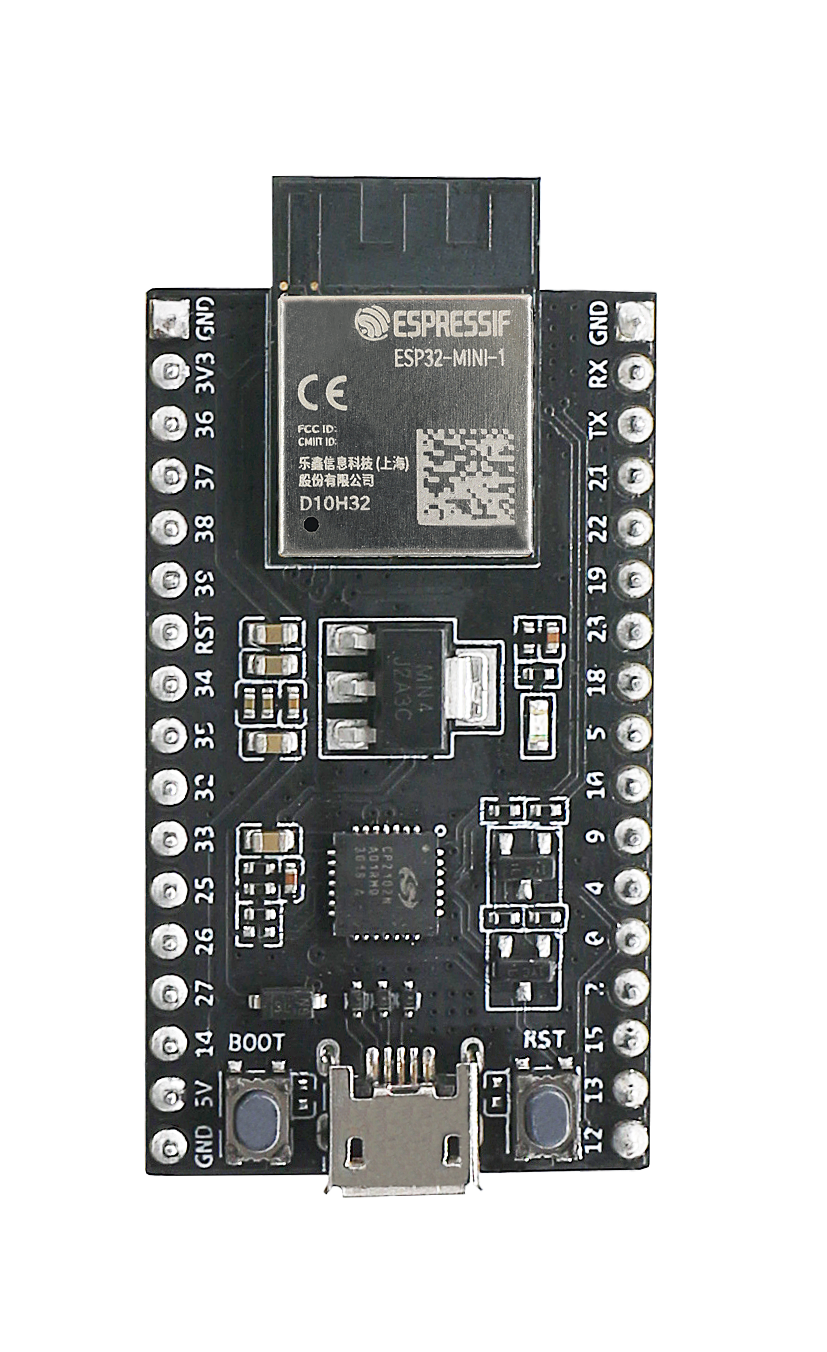

ESP32-DevKitM-1

ESP32-DevKitM-1 is a ESP32-MINI-1-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitM-1 on a breadboard.

4 MB Flash
  • I/O
  • USB
Buttons, LEDs ESP32-MINI-1
ESP32-MINI-1U
User Guide
ESP-WROVER-KIT

The ESP-WROVER-KIT comes with an ESP32-WROVER-E module by default. This board features support for an LCD and MicroSD card. The I/O pins have been broken out from the ESP32-WROVER-E for easy extension. The board carries an advanced multi-protocol USB bridge (the FTDI FT2232HL), enabling developers to use JTAG directly to debug the ESP32 module through the USB interface. The development board makes secondary development easy and cost-effective.

4 MB Flash + 8 MB PSRAM
  • I/O
  • JTAG
  • USB
  • Camera
  • UART
  • SPI
  • MicroSD Card
LCD Screen, Buttons, RGB LED ESP32-WROVER-E
Getting Started
Demo Code

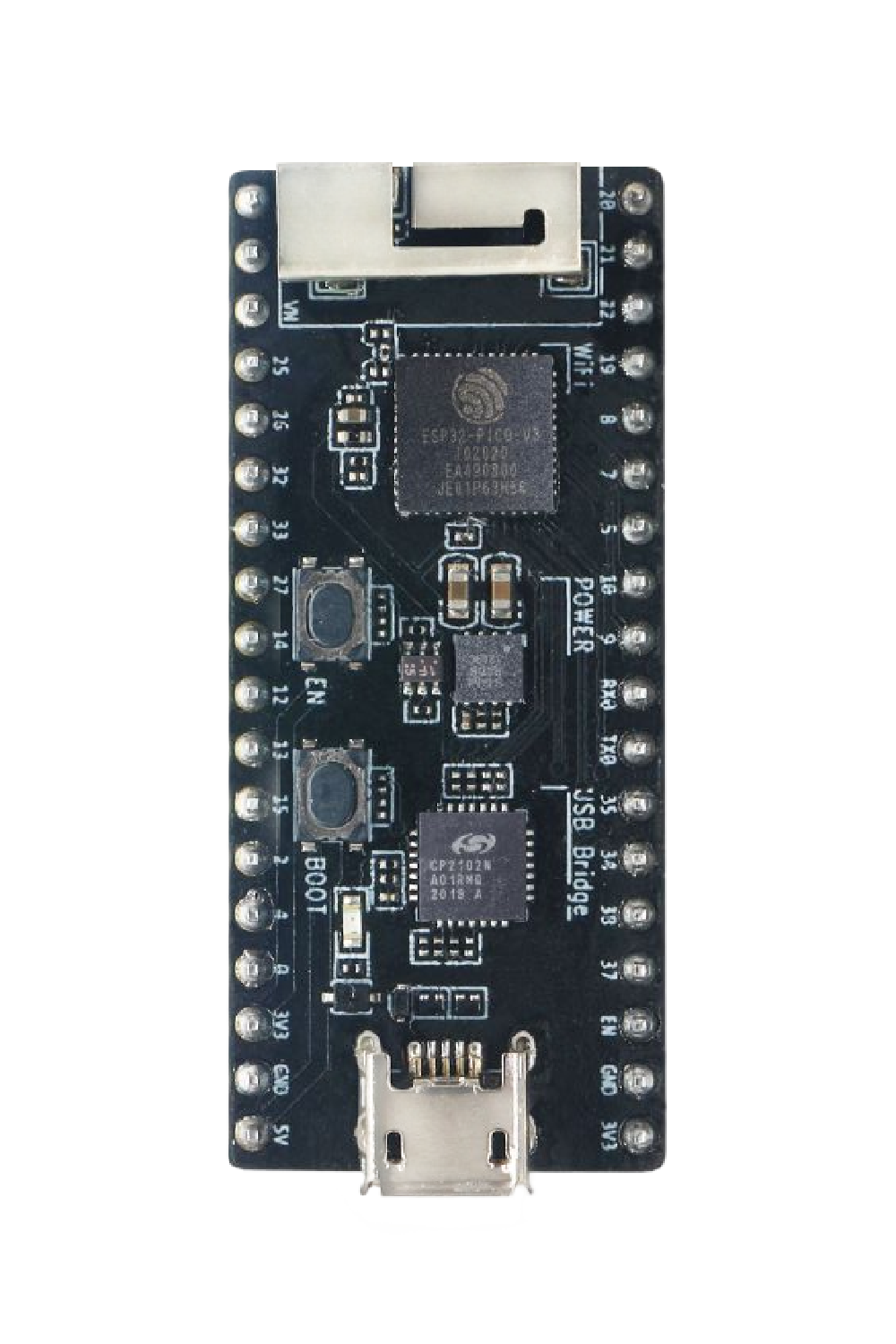

ESP32-PICO-KIT-1

ESP32-PICO-KIT-1 is an ESP32-PICO-V3 based development board produced by Espressif. ESP32-PICO-KIT-1 provides the users with hardware for development of applications based on the ESP32, making it easier for users to explore ESP32 functionalities.

4 MB Flash

I/O

USB

Buttons, LEDs ESP32-PICO-V3
User Guide

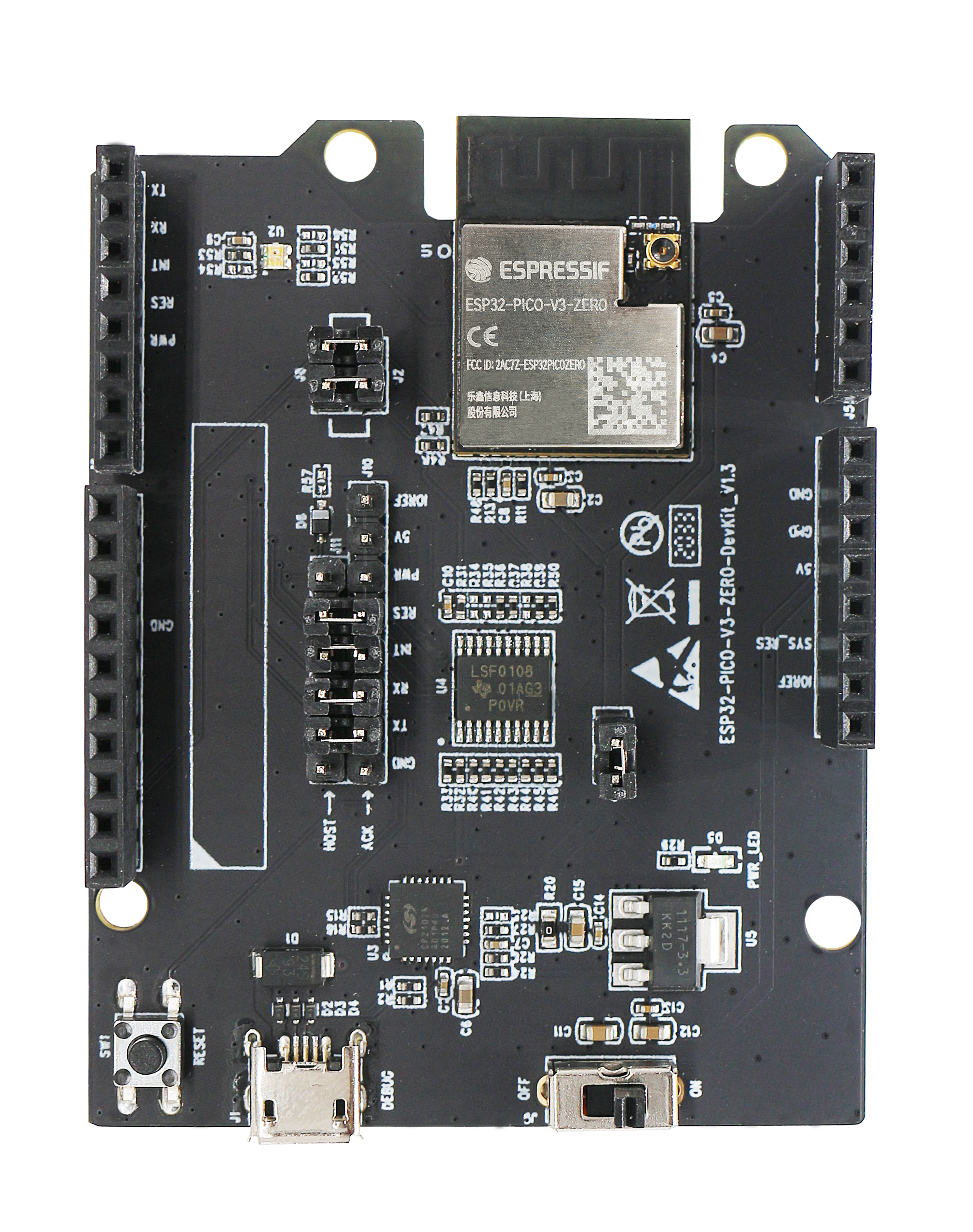

ESP32-PICO-V3-ZERO-DevKit

ESP32-PICO-V3-ZERO-DevKit is a development board based on ESP32-PICO-V3-ZERO (ACK) module. Its pin layout is compatible with that of Arduino Zero development board, therefore, this ESP32-PICO-V3-ZERO-DevKit can directly plug in Arduino Zero board, or connect with other host boards and peripherals via jumper.

4 MB Flash

I/O

USB

Buttons, LED ESP32-PICO-V3-ZERO
Getting Started
Demo Code

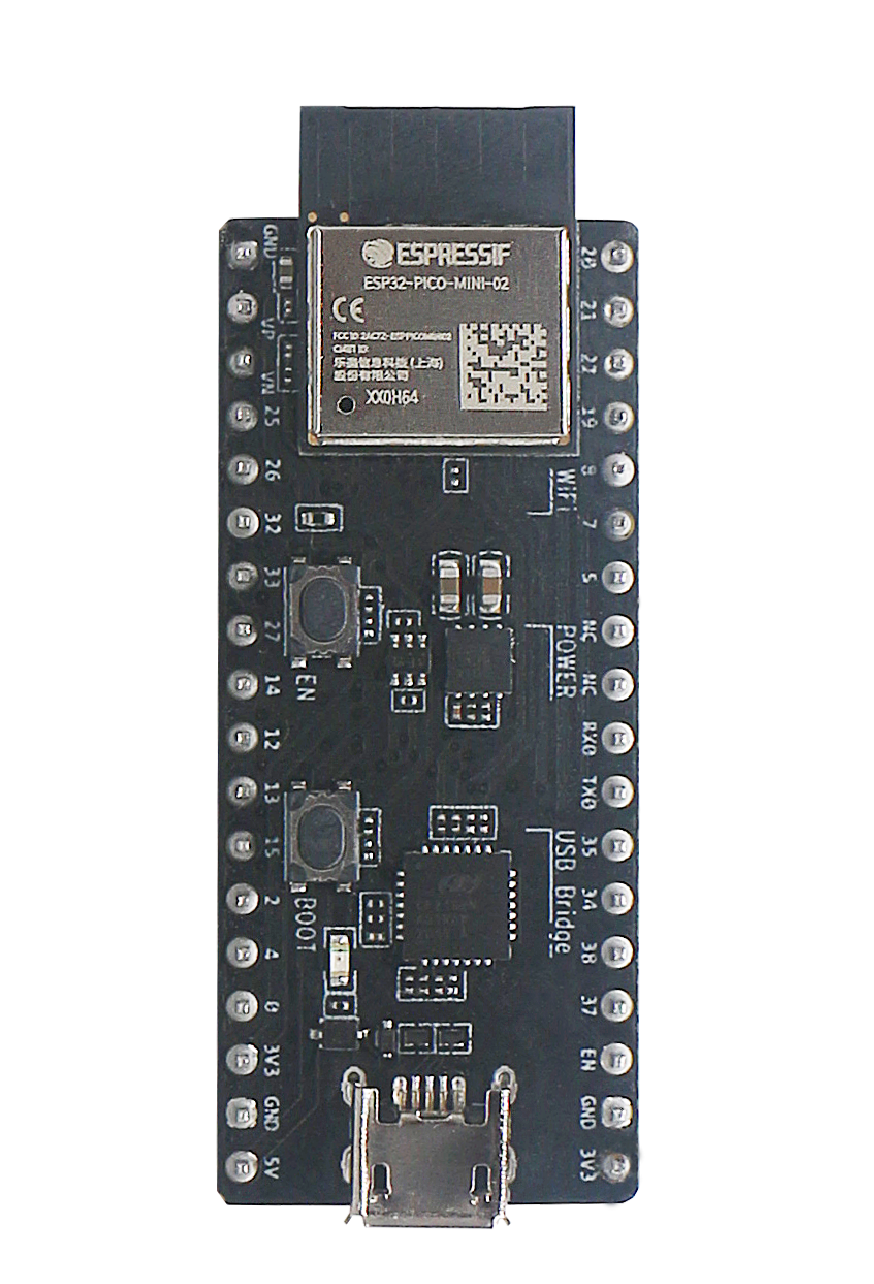

ESP32-PICO-DevKitM-2

ESP32-PICO-DevKitM-2 is a ESP32-PICO-MINI-02-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitM-1 on a breadboard.

8 MB Flash + 2 MB PSRAM
  • I/O
  • USB
Buttons, LEDs ESP32-PICO-MINI-02
ESP32-PICO-MINI-02U
User Guide
ESP32-LyraT

The ESP32-LyraT development board is designed for the speech and voice recognition market. It integrates the ESP32-WROVER-E module, which includes a dual-core processor and 4.5 MB of operating memory. With this development board, only few peripheral devices are required for implementing a highly-integrated audio solution.

4 MB Flash + 8 MB PSRAM
  • Micro SD Card
  • Audio Output
  • USB
  • Speaker
Touch Buttons, Keys, LEDs ESP32-WROVER-E
Getting Started
Demo Code

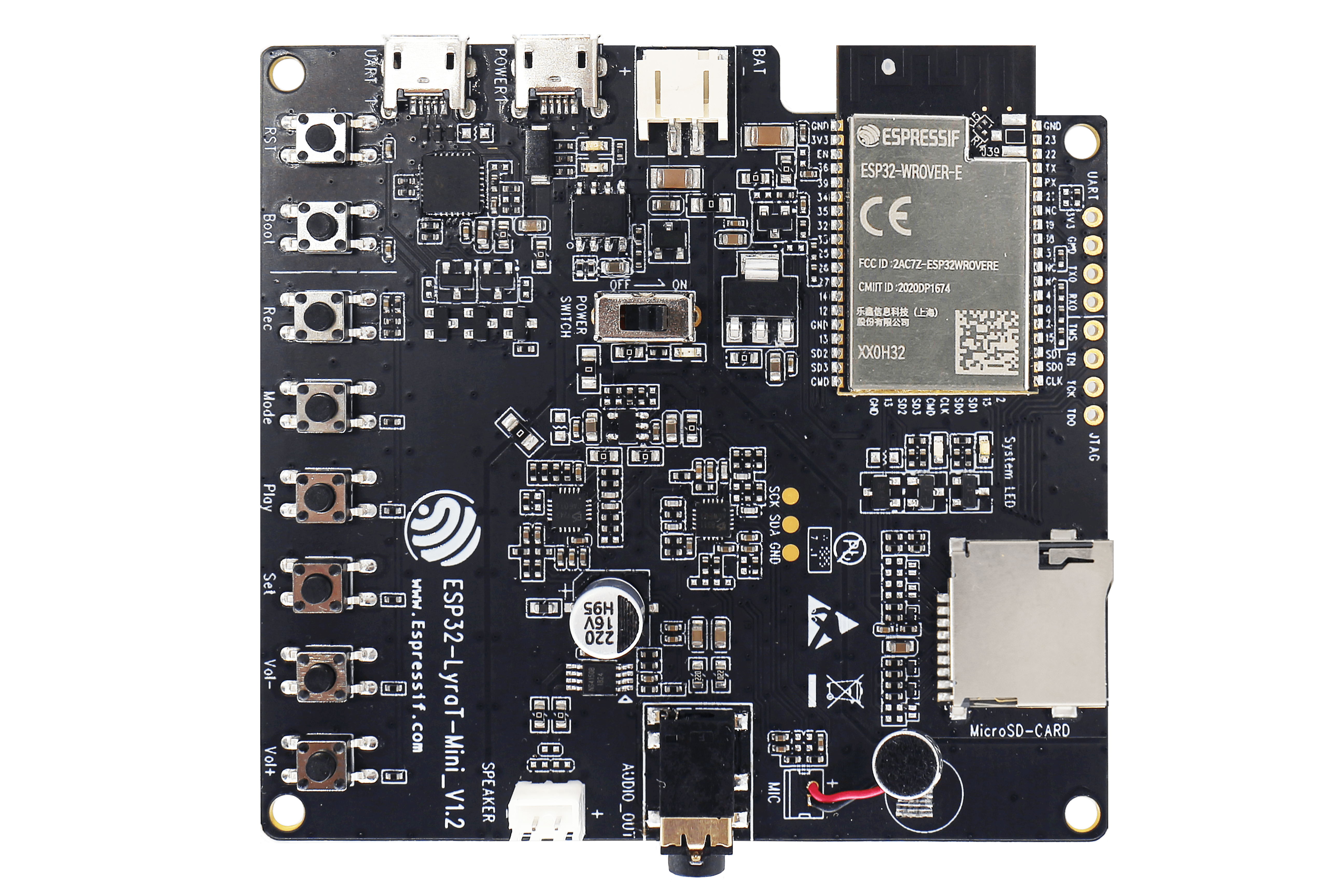

ESP32-LyraT-Mini

ESP32-LyraT-Mini is a lightweight audio development board based on ESP32-WROVER-E, which implements AEC, AGC, NS WWE (wake word engine) and other audio signal processing technologies.

8 MB Flash + 8 MB PSRAM

I2S

I2C

SDIO

ADC

UART

GPIO

Button, LED ESP32-WROVER-E
Getting Started
Demo Code
ESP32-LyraTD-MSC

ESP32-LyraTD-MSC, one of Espressif’s Audio Development Boards, is an Acoustic Echo Cancelation (AEC) solution supporting voice recognition, near-field and far-field voice wake-up. Audio files in the format of AAC, FLAC, OPUS and OGG can be decoded and output without quality loss. It also supports connection to Baidu's DuerOS and Amazon's Alexa Voice Service (AVS).

4 MB Flash + 8 MB PSRAM

USB

I2S

SPI

Earphone jack

Speaker

Micro SD Card

JTAG

Programing

LEDs, Keys ESP32-WROVER-E
Getting Started
Demo Code

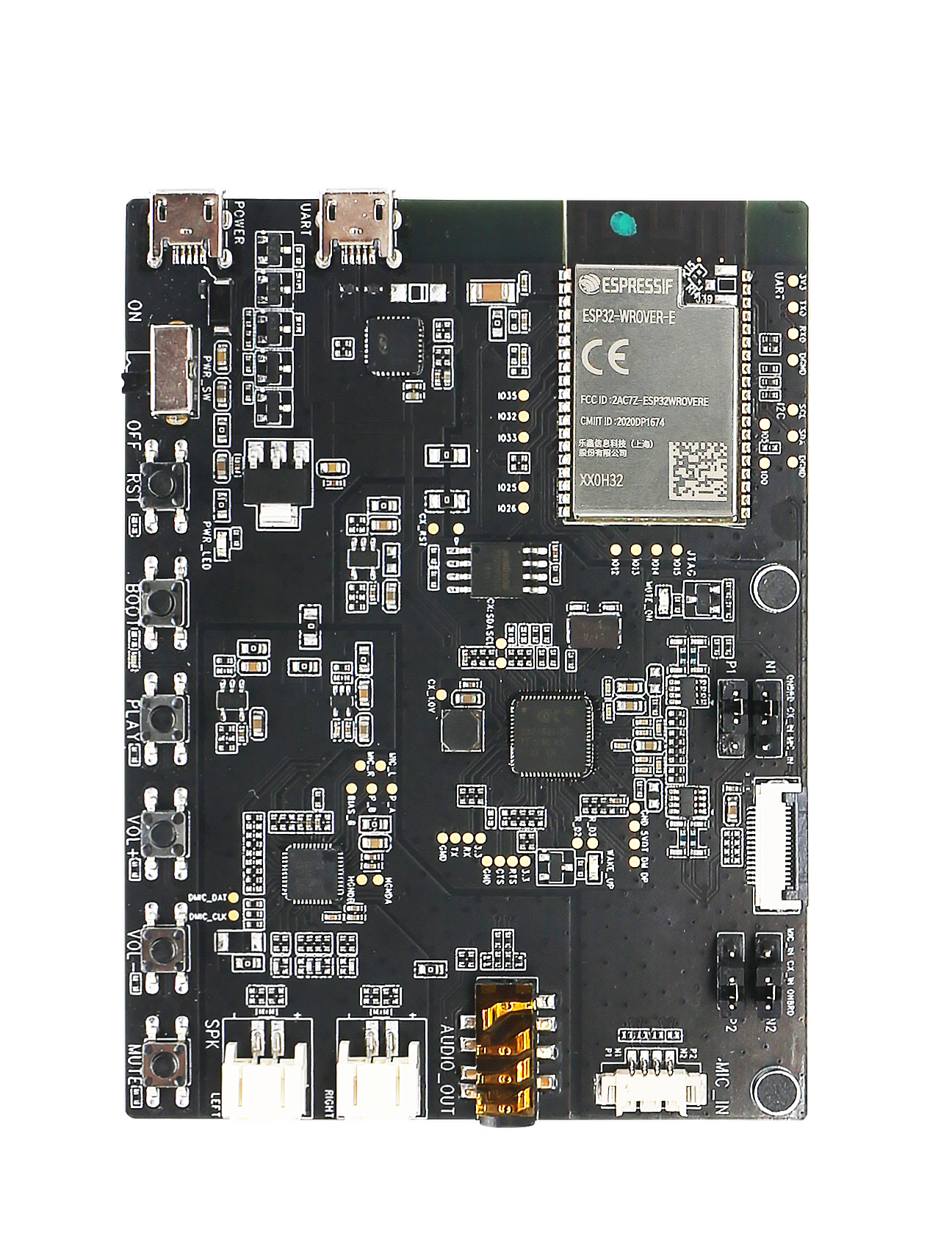

ESP32-LyraTD-SYNA

ESP32-LyraTD-SYNA is one of Espressif’s Audio Development Board based on ESP32 MCU and Synaptics DSP. It is an Acoustic Echo Cancelation (AEC) solution, supporting voice recognition and voice wake-up. It also supports connection to Amazon’s AVS (Alexa Voice Service), Google's Dialogflow and Google's GVA (Google Voice Assistant).

16 MB Flash + 8 MB PSRAM

I2S

I2C

ADC

UART

GPIO

Buttons, LED ESP32-WROVER-E
User Guide
Demo Code
ESP32-LyraTD-DSPG


ESP32-LyraTD-DSPG  is based on ESP32-WROVER-B, a BT/Wi-Fi combo module, and a digital signal processor (DSP) that features a three-microphone array for noise reduction, echo cancellation, beamforming and wake-word detection. ESP32-LyraTD-DSPG is integrated with peripheral devices and consists of two development boards. The sub board mainly consists of the microphone array, function keys and LEDs. The main board is integrated with power management, Wi-Fi and audio modules like dsp, codec and power amplifier. The two boards can be connected with FPC.

16 MB Flash + 8 MB PSRAM

USB

FPC

Speaker

Phone Jack

Button, Microphone, LED ESP32-WROVER-B
User Guide
Demo Code

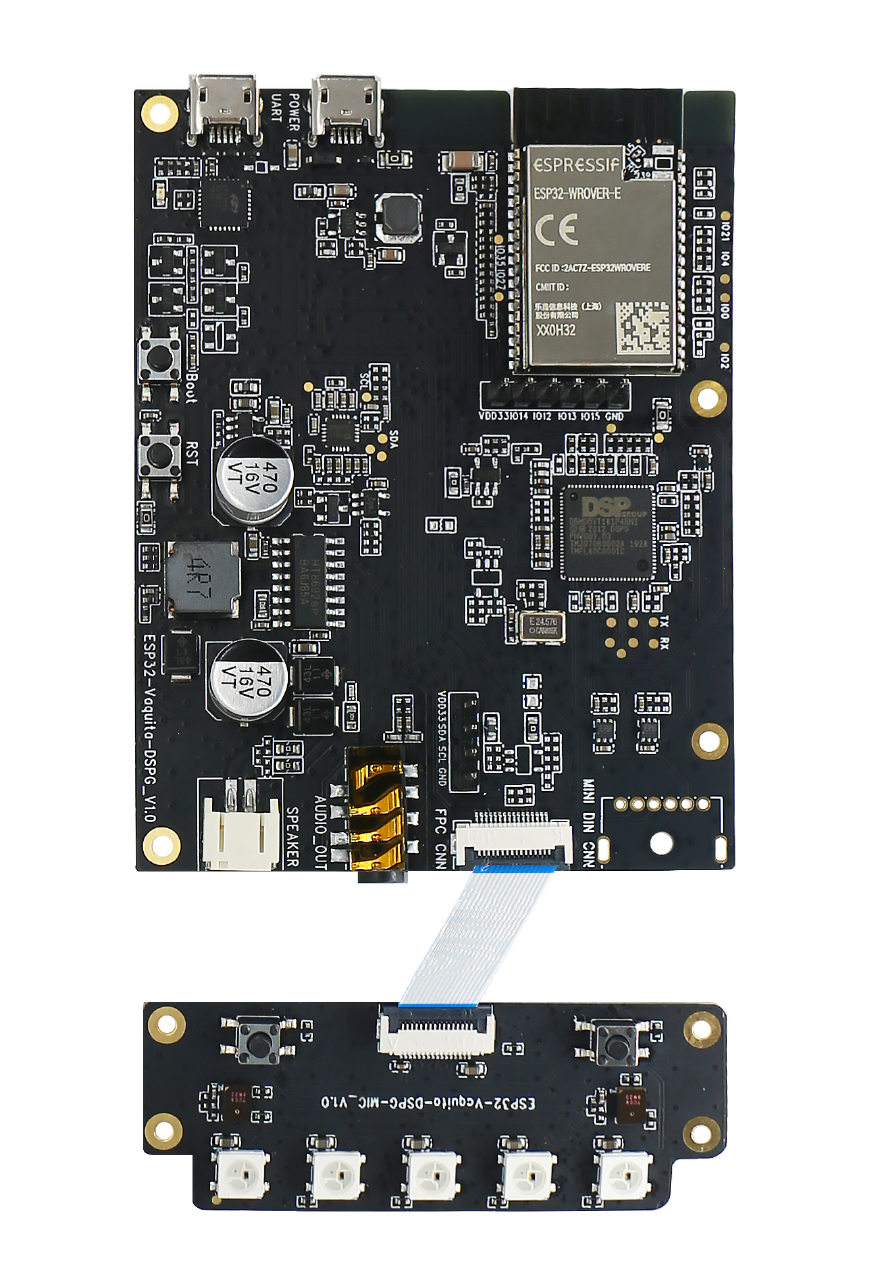

ESP32-Vaquita-DSPG

ESP32-Vaquita-DSPG is Espressif’s new Alexa built-in solution powered by ESP32 and DSP Group’s DBMD5P audio SoC. With a 2-Mic array which allows for a 360-degree pick-up, the solution provides a superior far-field voice recognition performance. The new ESP32-Vaquita-DSPG development kit is a turnkey solution for easily creating Alexa built-in connected devices that provide out-of-the-box voice enablement and AWS-IoT cloud connectivity.

16 MB Flash + 8 MB PSRAM

  • USB
  • 2x DMIC input
  • 1x earPhone Jack
  • 1x Speaker
5x RGB LEDs, 2x Function Keys ESP32-WROVER-E
User Guide
Demo Code
ESP32-Korvo

ESP32-Korvo is an ESP32-based audio development board with microphone array, together with Espressif's speech recognition SDK ESP-Skainet, ESP32-Korvo is suitable for far-field speech recognition applications with low power consumption. ESP32-Korvo is composed of two boards connected by an FPC cable: the main board contains ESP32-WROVER-E module, power port, micro SD card slot, earphone and speaker connectors; the sub board contains microphone array, function buttons and LEDs.

16 MB Flash + 8 MB PSRAM

  • USB
  • Earphone jack
  • Speaker
  • Micro SD card
Buttons, Speaker, LEDs ESP32-WROVER-E
User Guide
Demo Code
ESP32-LCDKit

ESP32-LCD-Kit is an HMI (Human Machine Interface) development board based on ESP32-DevKitC (need to purchase if you didn’t have one). ESP32-LCDKit is integrated with such peripherals as SD-Card, DAC-Audio, and can be connected an external display. The board is mainly used for HMI-related development and evaluation. Development board reserved screen interface type: SPI serial interface, 8-bit parallel interface, 16-bit parallel interface.

N/A

I/O

USB

LCD, Speaker ESP32-DevKitC
User Guide
Demo Code

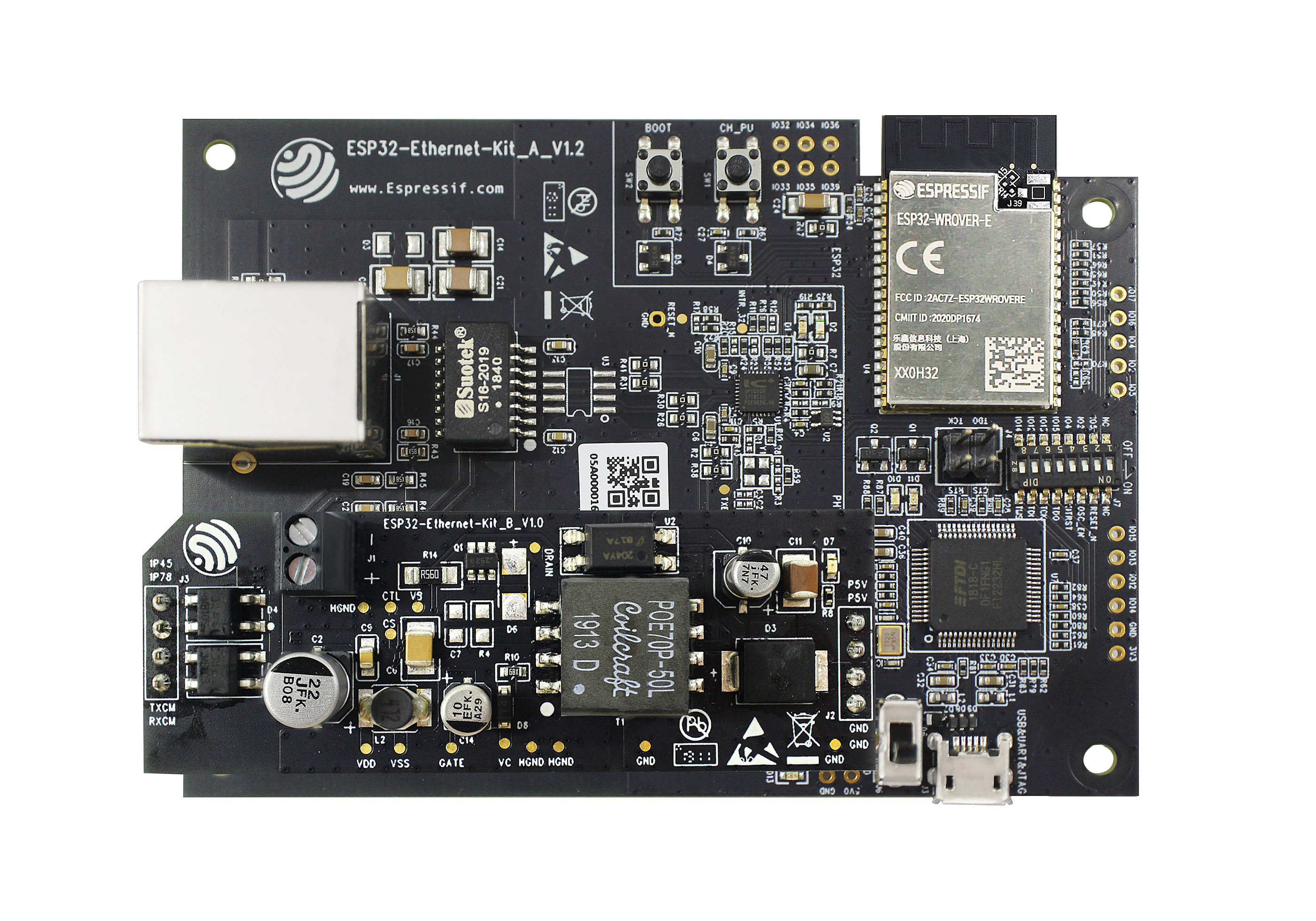

ESP32-Ethernet-Kit

ESP32-Ethernet-Kit is an ESP32-based development board produced by Espressif. It consists of two development boards, the Ethernet board A and the PoE board B, The Ethernet board contains Bluetooth / Wi-Fi dual-mode ESP32-WROVER-E module and IP101GRI, a Single Port 10/100 Fast Ethernet Transceiver (PHY). The PoE board (B)  provides power over Ethernet functionality. The A board can work independently, without the board B installed.

4 MB Flash+ 8 MB PSRAM
  • RMII
N/A ESP32-WROVER-E
Getting Started
Demo Code

ESP8266 Series

32-bit MCU & 2.4 GHz Wi-Fi

  • PC connectivity: USB
  • SDK: ESP8266 RTOS SDK source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

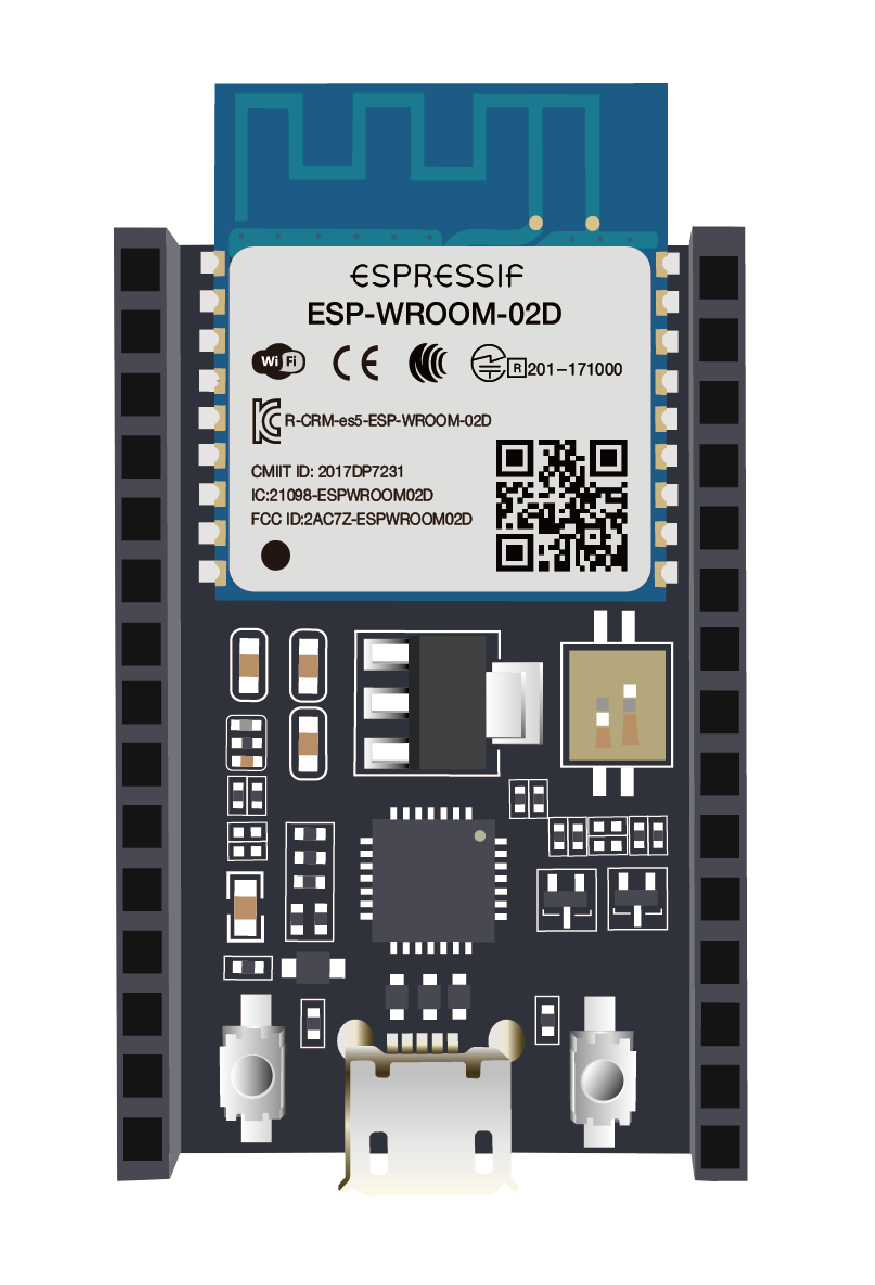

ESP8266-DevKitC

ESP8266-DevKitC is an Espressif compact development board based on ESP8266 modules. All of the I/O pins of the module are broken out to the female header connectors on both sides of the board for easy interfacing. Developers can connect these pins to peripherals as needed.

2 MB Flash
  • HSPI
  • PWM
  • IR
  • I/O
  • ADC
  • UART
  • I2S
  • I2C
  • USB
Buttons ESP-WROOM-02D
ESP-WROOM-02U
Getting Started
Demo Code

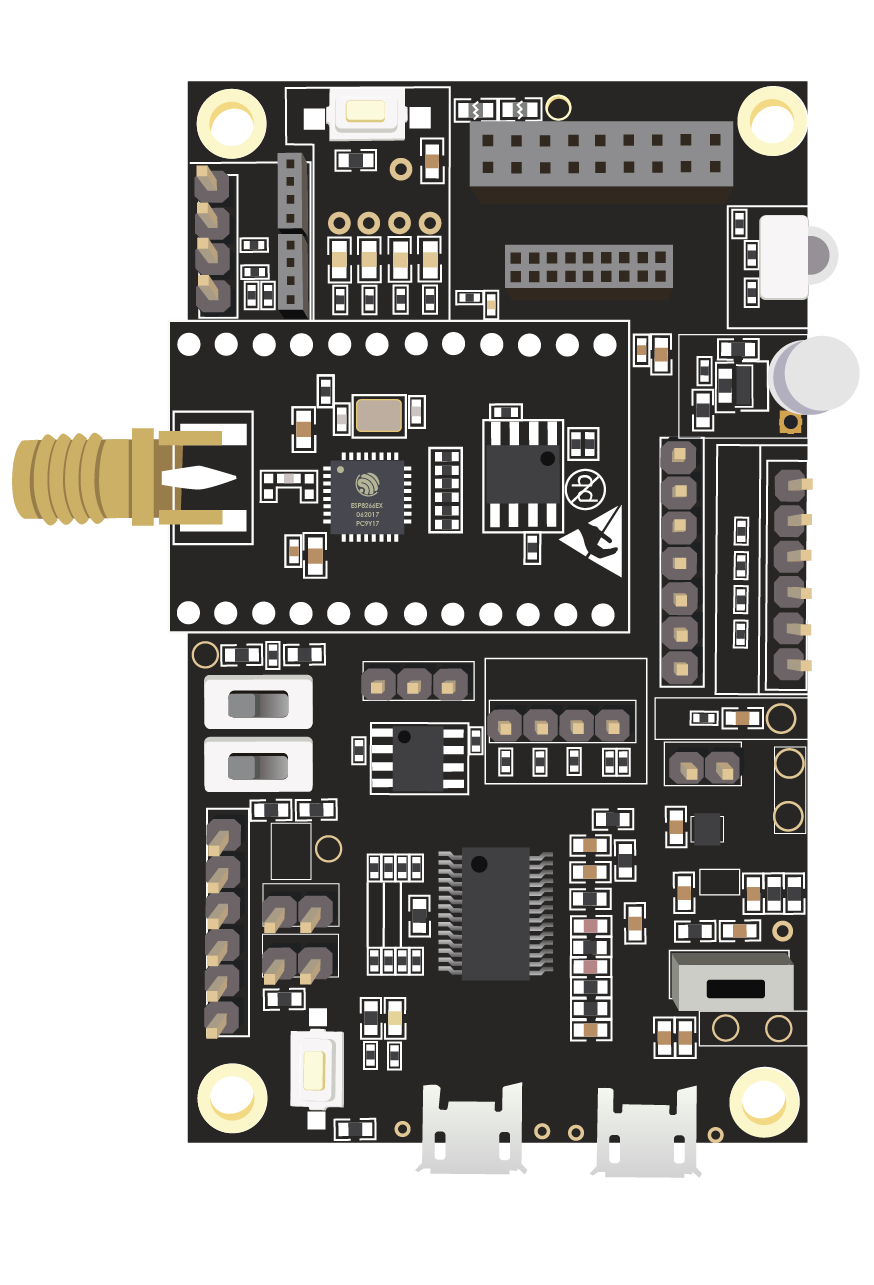

ESP-Launcher

ESP-Launcher is a Micro USB-powered development board that allows access to all 32 pins of ESP8266. It integrates the commonly-used peripherals.

2 MB SPI Flash + 4 MB HSPI Flash

  • I/O
  • USB
Buttons, LEDs ESP8266EX
Getting Started
Demo Code

Other IoT DevKits

32-bit MCU & 2.4 GHz Wi-Fi & BT/Bluetooth LE & Sensor

  • PC connectivity: USB
  • SDK: ESP-IOT-SOLUTION source code and example applications
Boards Buy Description Flash / PSRAM Interfaces UI Related Products Getting Started

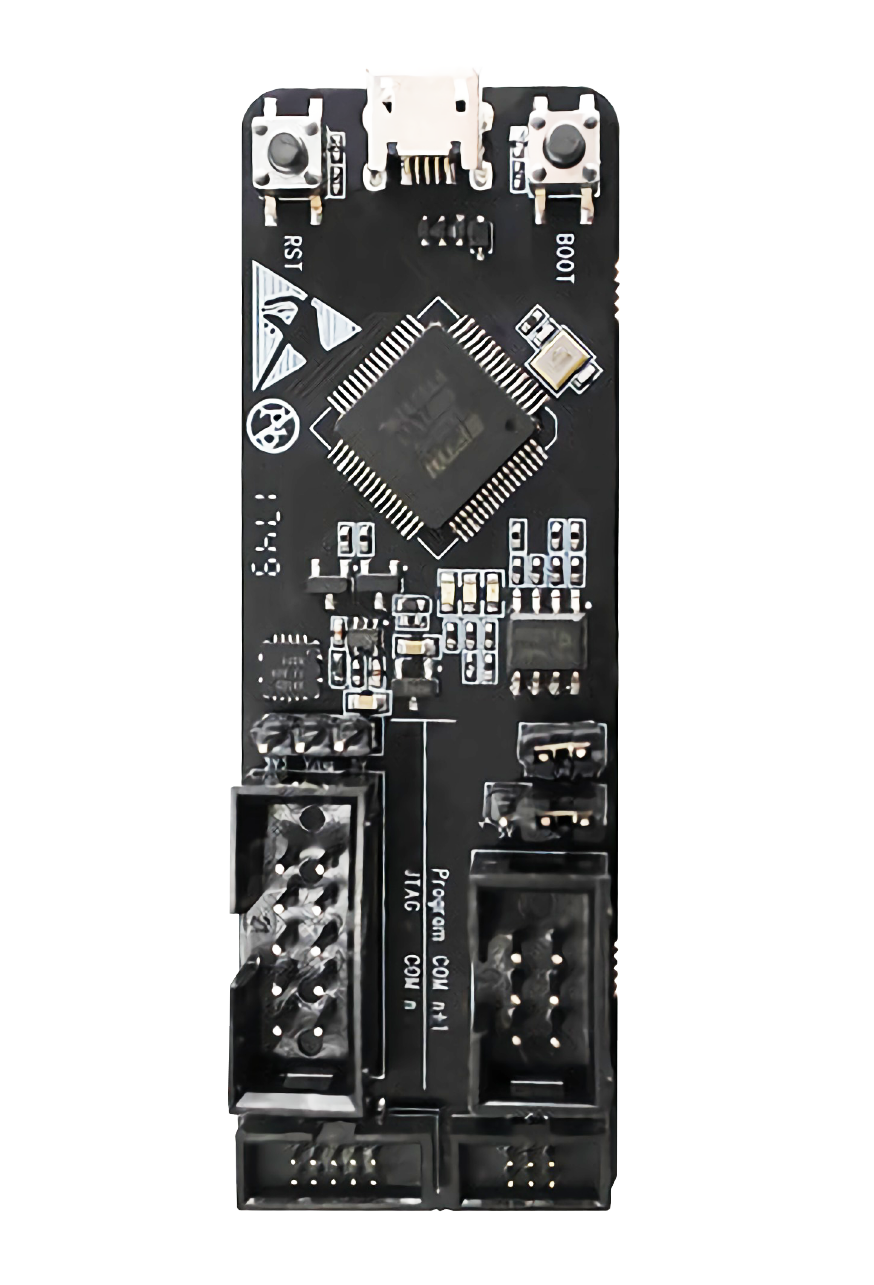

ESP-Prog

ESP-Prog is one of Espressif’s development and debugging tools, with functions including automatic firmware downloading, serial communication, and JTAG online debugging. ESP-Prog's automatic firmware downloading and serial communication functions are supported on both the ESP8266 and ESP32 platforms, while the JTAG online debugging is supported only on the ESP32 platform. ESP-Prog uses FT2232HL as its USB Bridge Controller chip.

N/A
  • I/O
  • USB
  • Header connecters
LED, Keys ESP32-Sense Kit
ESP32-MeshKit-Sense
User Guide
